Fiberglass Mesh


Availability:

Quantity:



Inquire Add to Basket

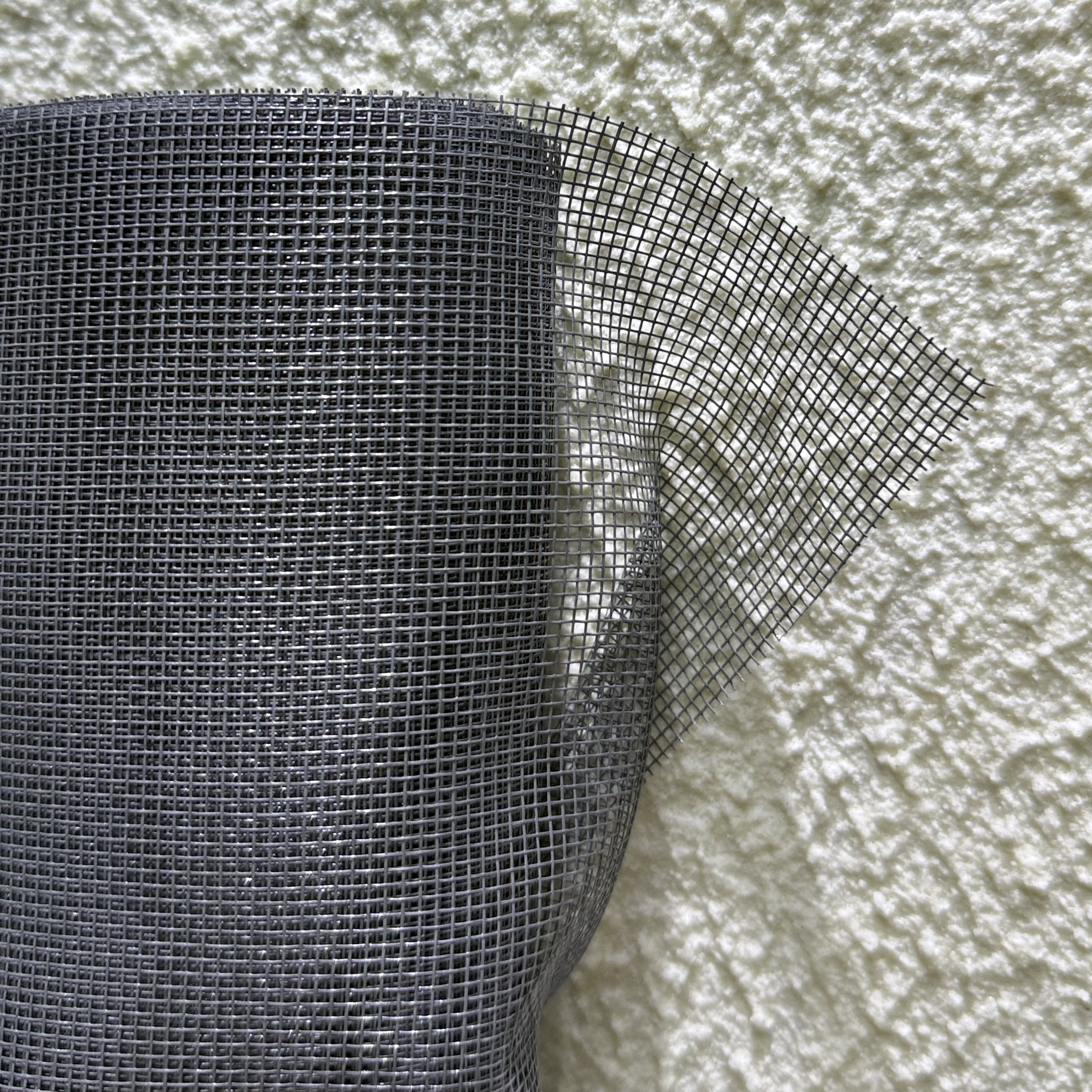

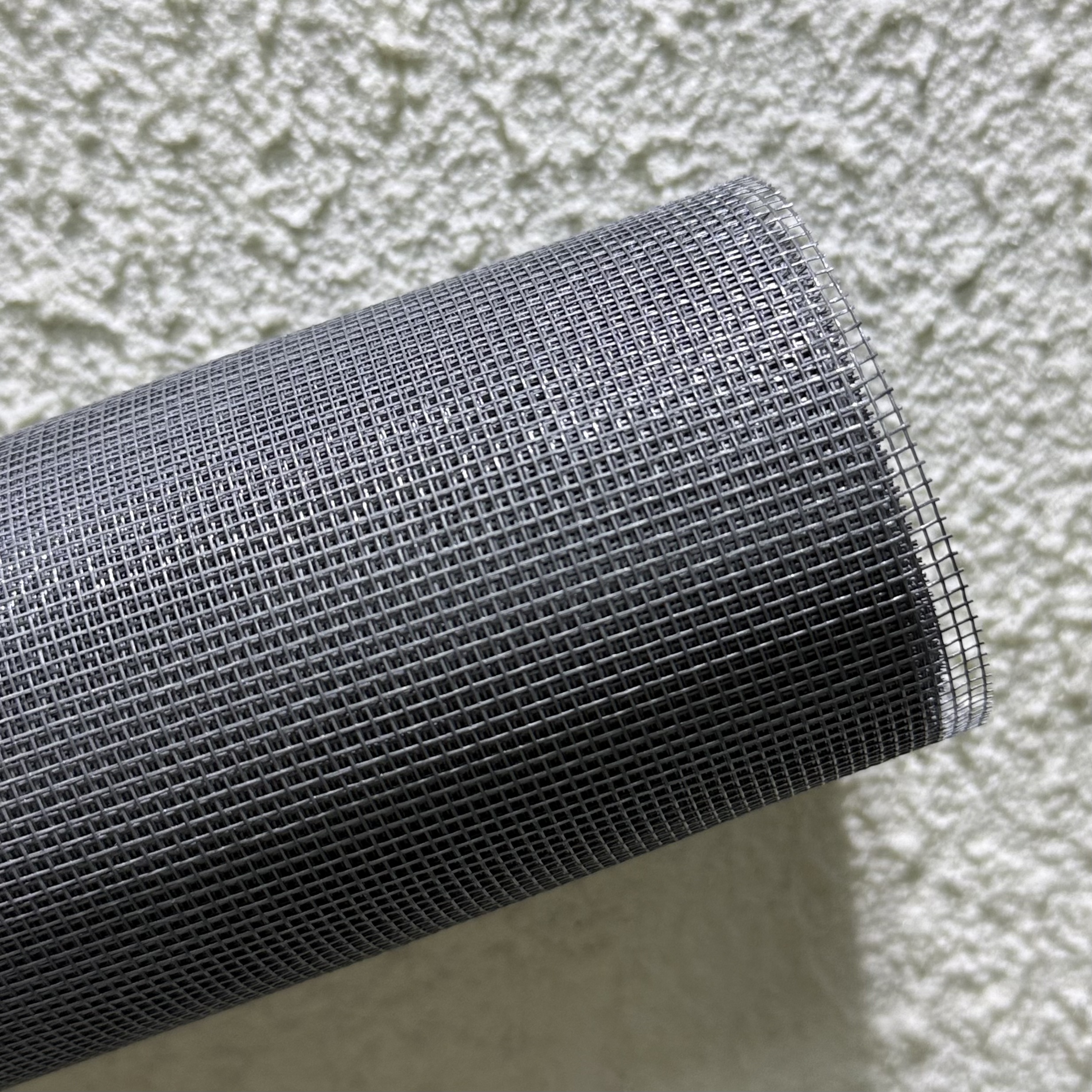

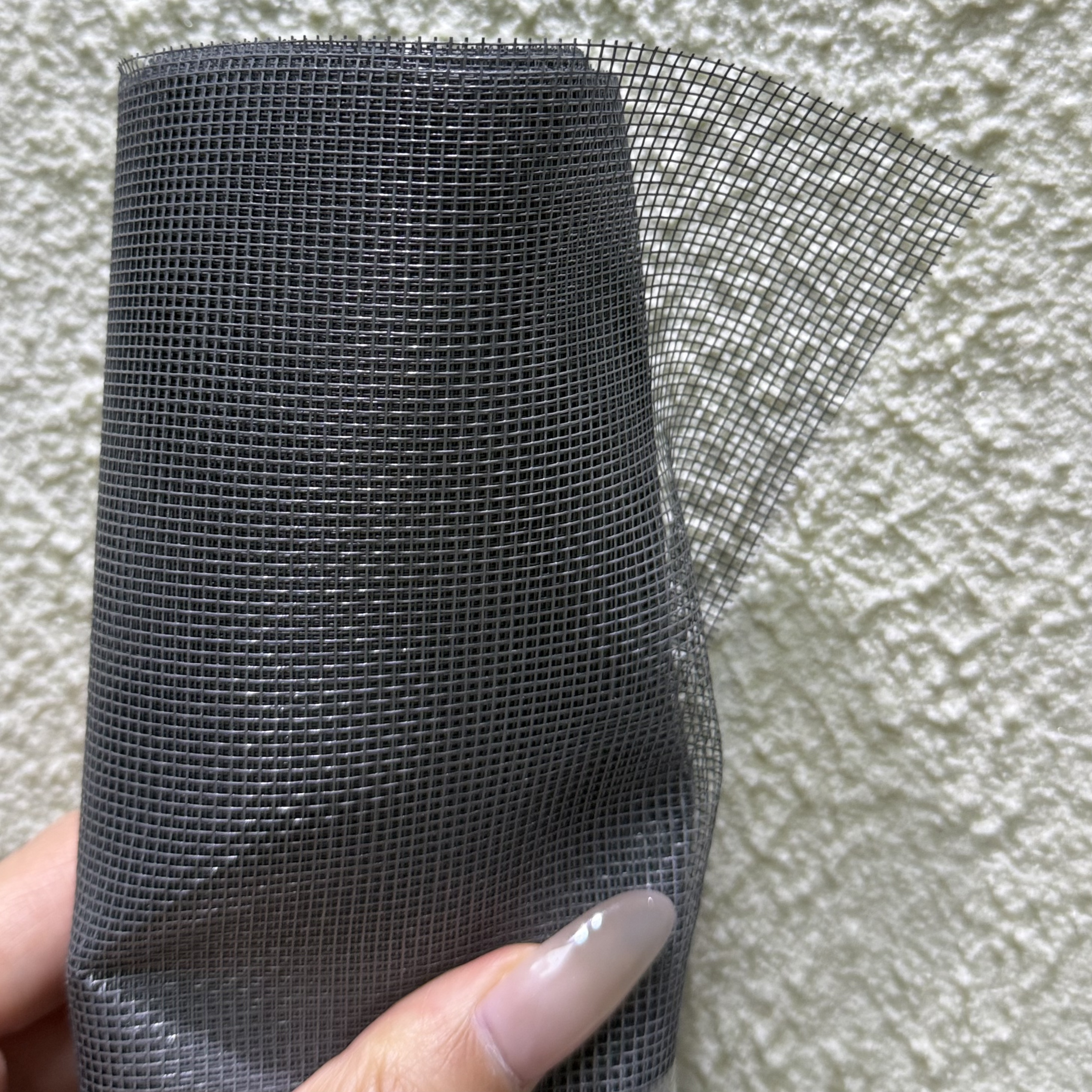

Fiberglass mesh is a strong, durable material made from woven glass yarn. The mesh is first created in a loom state, then coated with a protective layer that hardens and enhances its structural properties. Woven fiberglass mesh is typically made from two types of glass: E-glass (600°C) and SiO2-glass (1000+°C), each providing unique strength, heat resistance, and durability. This versatile material is widely used in construction, DIY projects, and home improvement, including reinforcing insulation, drywall repair, fiberglass mesh tape, profiles, and as a base material for grinding wheels. Its lightweight, high-strength properties make it ideal for long-lasting reinforcement applications.

Key Features

Made from high-strength woven E-glass and SiO2-glass fibers for superior durability and heat resistance.

Coated protective layer enhances structural integrity and long-term performance.

Lightweight yet strong, ideal for construction, DIY, and home improvement projects.

Commonly used for reinforcing insulation, drywall repair, mesh tape, profiles, and grinding wheel bases.

Provides reliable, long-lasting reinforcement and versatile application across multiple industries.

Technical Parameters

Technical characteristics — 18×16 (0.011") Fiberglass Screen Mesh
Property	Imperial (nominal value)	Metric (nominal value)
Area Weight	3.4 oz/yd²	110.0 g/m²
Mesh	18 x 16 ends/inch	7 x 6 ends/cm
Breaking Strength (Warp)	166 lbf	740 N
Breaking Strength (Weft)	129 lbf	575 N
Bursting strength after 480 hr accelerated weathering	>100 PSI	>68.9 N/cm²
Bond	31 lbf	140 N
Stiffness (Warp)	70–90 mgr	70–90 mgr
Stiffness (Weft)	70–90 mgr	70–90 mgr
Coating Formulation	Proprietary	Proprietary
Flame Resistance	PASS	PASS
Coated Yarn Thickness	0.011 inch	0.280 mm
Standard Dimensions (Width)	14–108 inches	356–3000 mm
Standard Dimensions (Length)	7 / 25 / 100 / 600 feet	2.13 / 7.62 / 30.5 / 183 m
Standard	ASTM D3656-04	ASTM D3656-04

Tolerances	Imperial	Metric
Area weight	± 5%	± 5%
Bursting	± 5%	± 5%
Bond	± 5%	± 5%
Mesh Count	± 1 end/inch	± 0.4 ends/cm
Thickness	± 0.001 inch	± 0.0254 mm
Width	+0.25 inch / -0 inch	+6 mm / -0 mm
Length	+1%/0%	+1%/0%

Technical characteristics (17×15 mesh)
Property	Imperial (nominal value)	Metric (nominal value)
Area Weight	3.1 oz/yd²	100 g/m²
Mesh	17 x 15 ends/inch	6.7 x 5.9 ends/cm
Breaking Strength (Warp)	160 lbf	710 N
Breaking Strength (Weft)	125 lbf	555 N
Bursting strength after 480 hr accelerated weathering	>95 PSI	>65.5 N/cm²
Bond	30 lbf	135 N
Stiffness (Warp)	65–85 mgr	65–85 mgr
Stiffness (Weft)	65–85 mgr	65–85 mgr
Coating Formulation	Proprietary	Proprietary
Flame Resistance	PASS	PASS
Coated Yarn Thickness	0.011 inch	0.260 mm
Standard Dimensions (Width)	14–108 inches	356–3000 mm
Standard Dimensions (Length)	7 / 25 / 100 / 600 feet	2.13 / 7.62 / 30.5 / 183 m
Standard	ASTM D3656-04	ASTM D3656-04

Property	Imperial	Metric
Area weight	± 5%	± 5%
Bursting	± 5%	± 5%
Bond	± 5%	± 5%
Mesh Count	± 1 end/inch	± 0.4 ends/cm
Thickness	± 0.001 inch	± 0.0254 mm
Width	+0.25 inch / -0 inch	+6 mm / -0 mm
Length	+1%/0%	+1%/0%

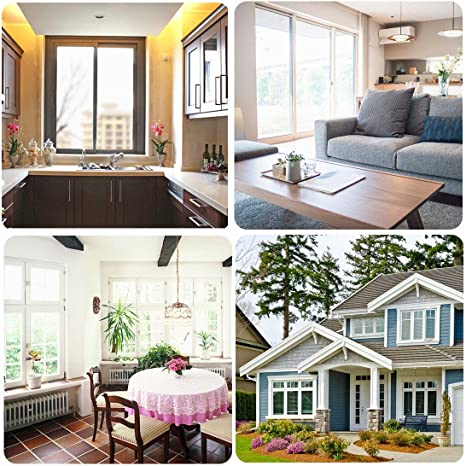

Applications / Projects

Fiberglass Mesh is a woven fabric made of alkali-resistant glass fiber yarn, widely used for wall reinforcement, insulation systems, marble backing, and waterproofing.

A strong, lightweight, and durable solution for construction and renovation projects.

Packaging & Shipping

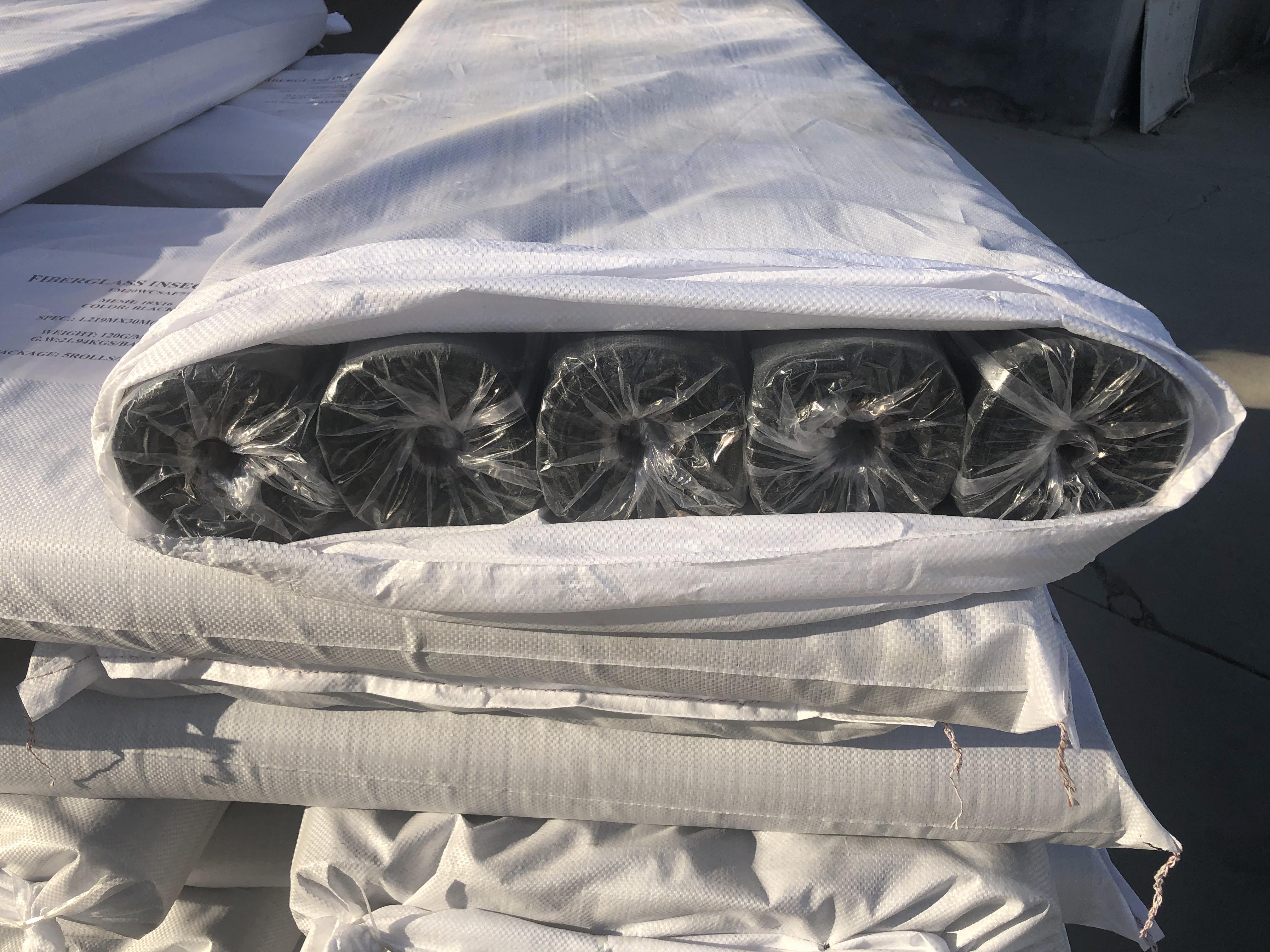

Each roll is wrapped with plastic film and packed in strong cartons or pallets.

Customized labels and color packaging are available.

Delivery within 10–20 days by sea, air, or express.

FAQ

1.What is fiberglass mesh used for?

Fiberglass mesh is mainly used to reinforce walls, floors, tiles, marble backing, and waterproof layers to prevent cracking and improve bonding strength.

2.Is fiberglass mesh alkali resistant?

Yes, it’s coated with alkali-resistant latex or epoxy, so it can be used safely with cement and plaster without damage.

3.What mesh size and weight can you supply?

Common sizes are 4×4mm or 5×5mm, and weights range from 75g to 160g/m². Custom options are available.

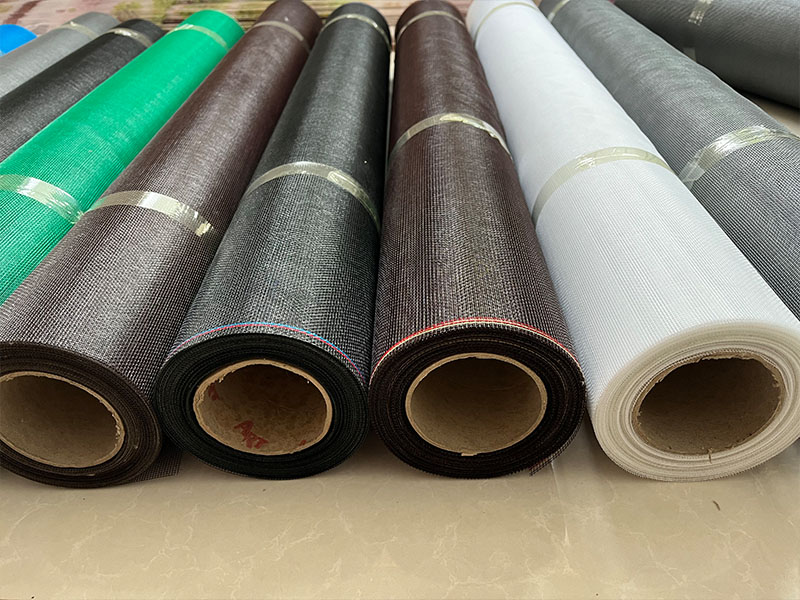

4.Can I get custom colors or packaging?

Sure! We can produce different colors (white, orange, blue, etc.) and offer OEM packaging with your brand label.

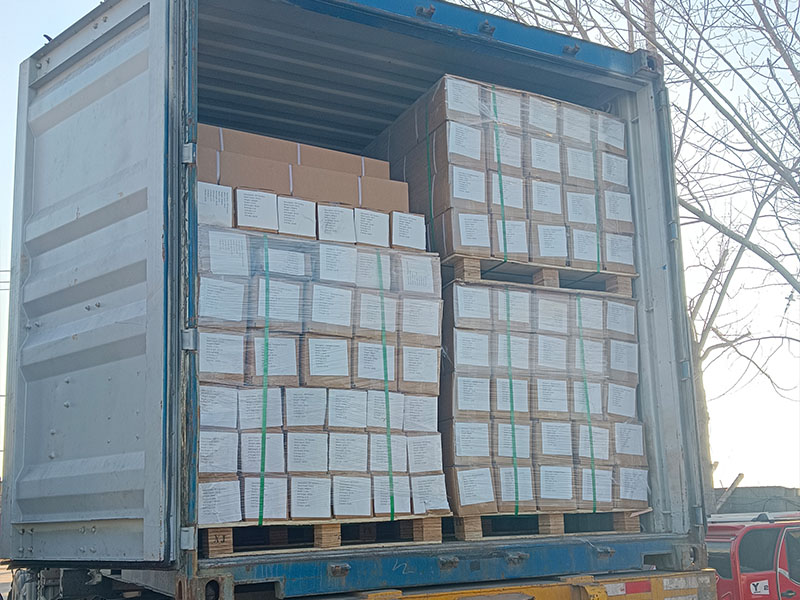

5.How is fiberglass mesh packed for export?

Usually each roll is wrapped with shrink film, then packed in cartons or pallets for safe shipping.
