Our hinge joint field fence, also known as high jointed fence, serves as a versatile and cost-effective solution for livestock containment and perimeter delimitation. Manufactured from high-tensile galvanized steel wire, this fence features flexible hinged joints that absorb impact without breaking, making it suitable for undulating terrain and large pastures. It is widely used by ranchers and farm operators worldwide for managing cattle, horses, sheep, and excluding deer.

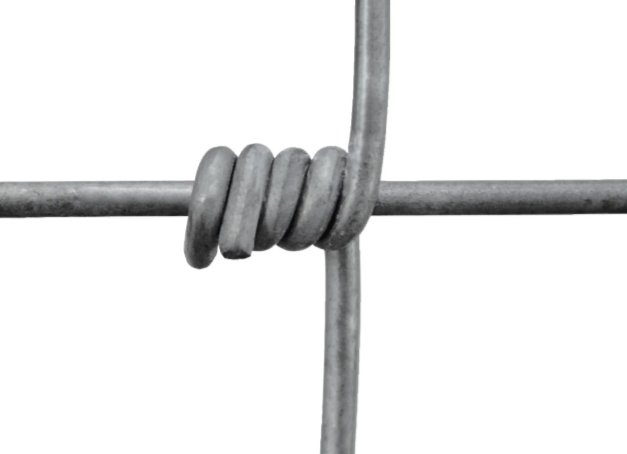

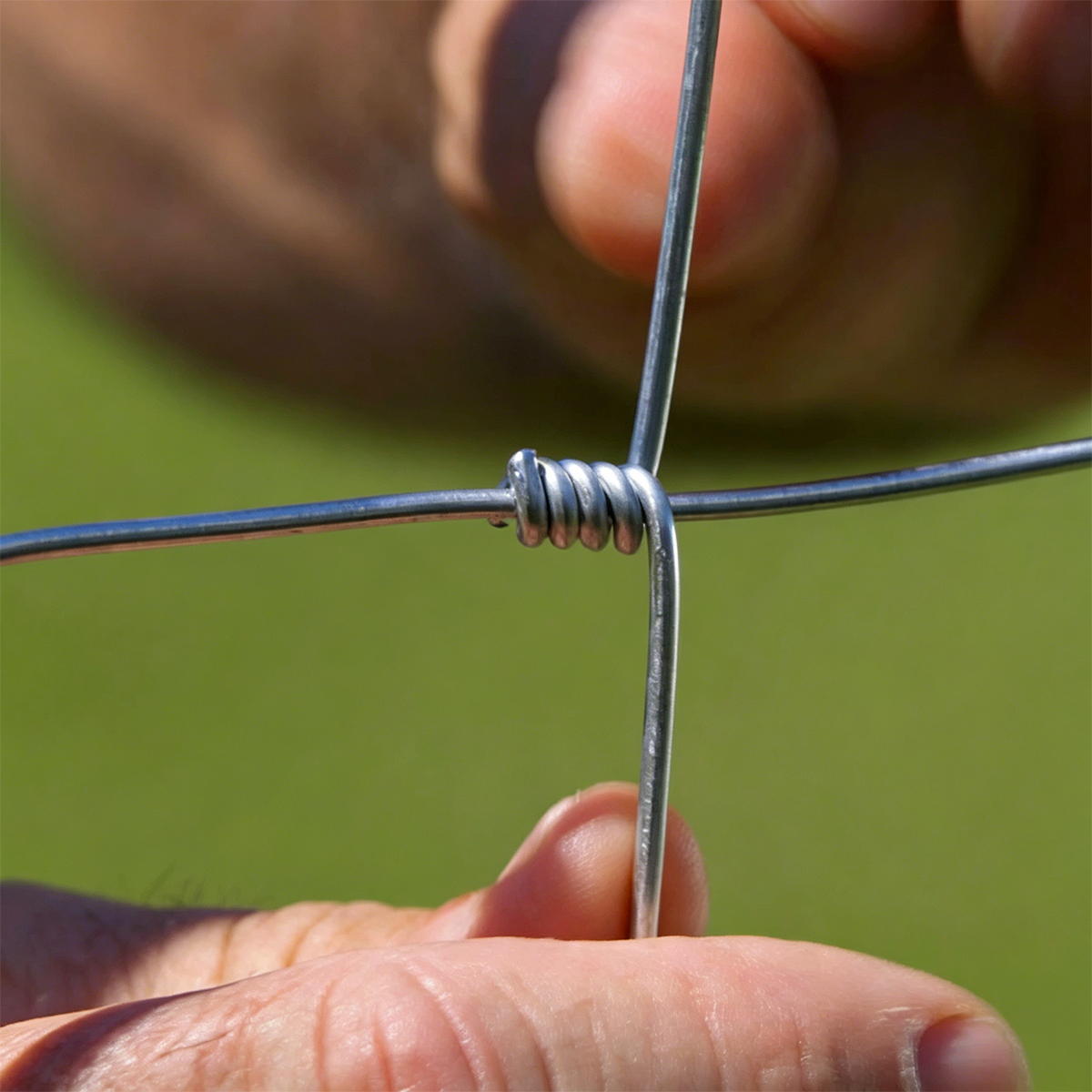

Stay wires are wrapped around line wires to form a hinge that allows the fence to flex under pressure. This design absorbs impacts from large animals or falling branches without breaking, and returns to its original shape once the pressure is removed. It is particularly well-suited for hilly terrain and areas with active livestock.
Our fence is available with two levels of hot-dipped galvanized protection. Standard galvanization provides a zinc coating of 200-300 g/m², delivering 15-25 years of rust resistance in humid or coastal environments. Class III galvanization offers a zinc coating density of 230-350 g/m², achieving over 1,000 hours of salt spray resistance per ASTM B117 standards and 15-30 years of rust-free service life. PVC coating is also available as an additional protective option. No painting or regular maintenance is required after installation.

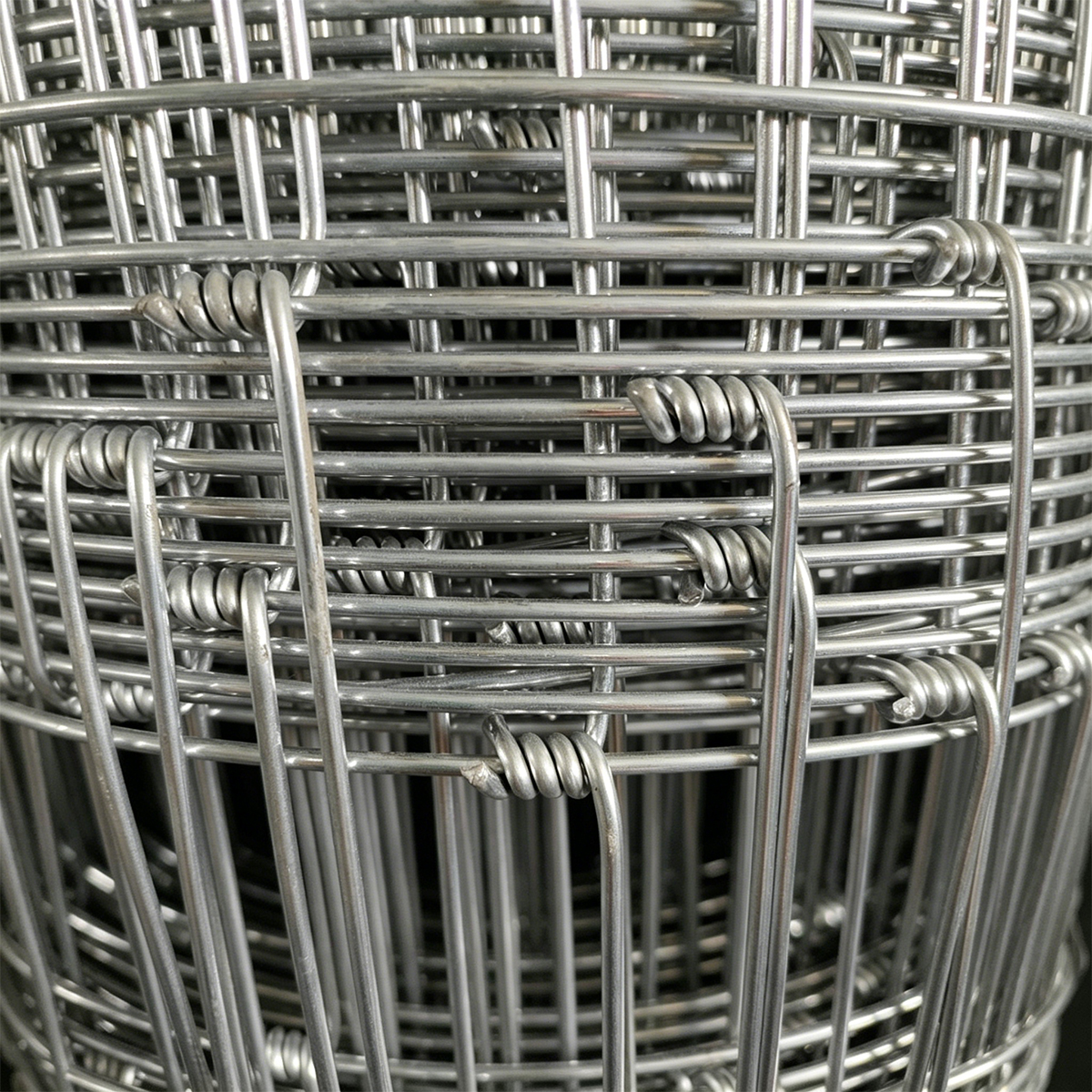

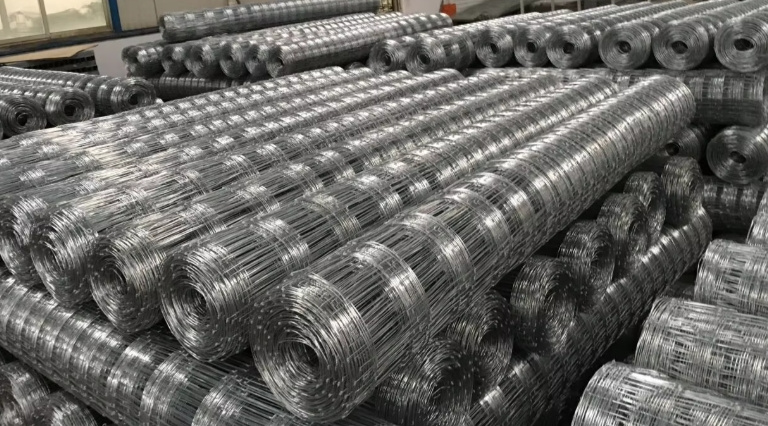

The fence comes in pre-wound rolls for easy deployment. Unroll the fence directly along your fence line, staple it to wooden posts or clip it to steel T-posts, and apply tension. A two-person crew can install 200-300 meters per day, reducing labor costs compared to rigid panel systems.
The top and bottom line wires are 20-30% thicker than internal wires. This design provides enhanced tensioning strength and prevents sagging or breakage at the most stressed points, which bear the majority of animal pressure and installation torque.
Parameter | Details |
Color | Silver, Green Optional |
Height | 0.8m, 1.0m, 1.2m, 1.5m, 1.8m, 2.0m |
Roll Length | 50m, 100m |

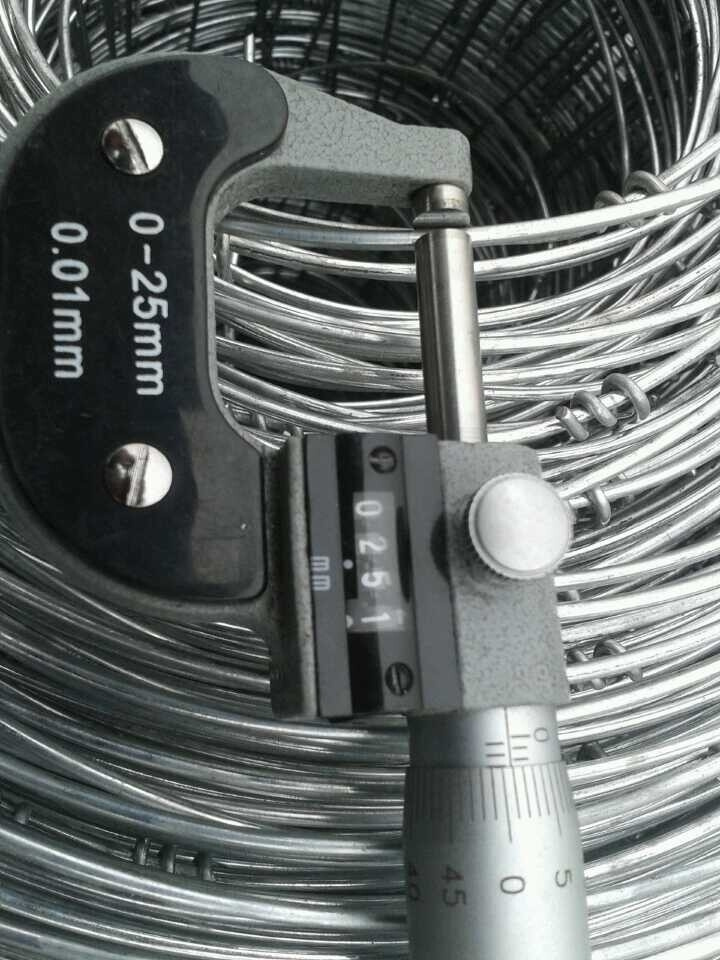

Wire Diameter | 2.0mm, 2.5mm, 3.0mm |
Material | Low Carbon Galvanized Steel Wire |
Surface Treatment | Hot Dipped Galvanized Before/After Weaving, PVC Coated Optional |
Packing | Plastic Film, Pallet, Customized Label |
Sales Models | Wholesale, OEM, ODM |
Min Order | 50-100 Rolls |
Usage | Cattle, Sheep, Deer, Farm and Ranch Fencing |
| |

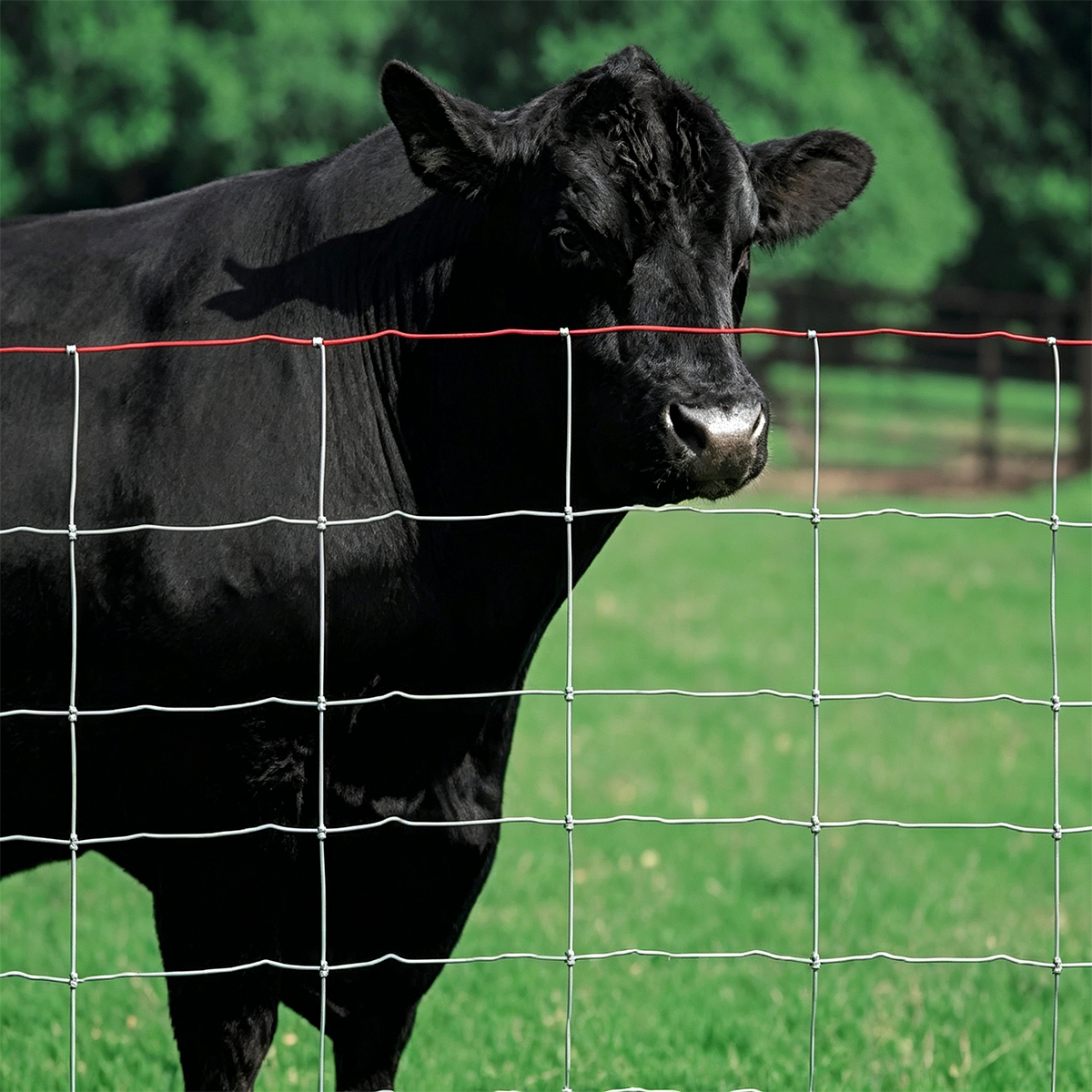

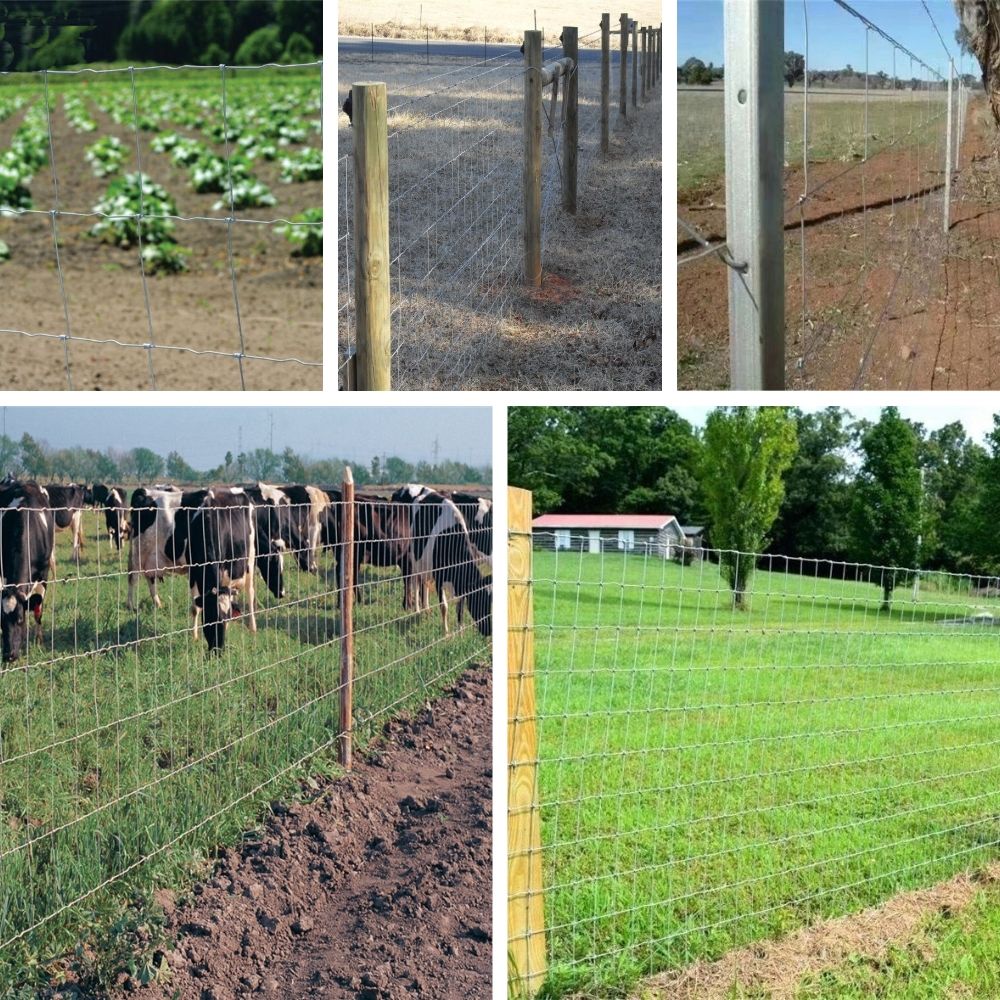

Cattle and Bison: 12.5-gauge heavy wire withstands pushing and rubbing. Recommended height: 1.2-1.5m.
Horses: Smooth hinge joints eliminate sharp edges, reducing injury risks. Recommended height: 1.5-1.8m.

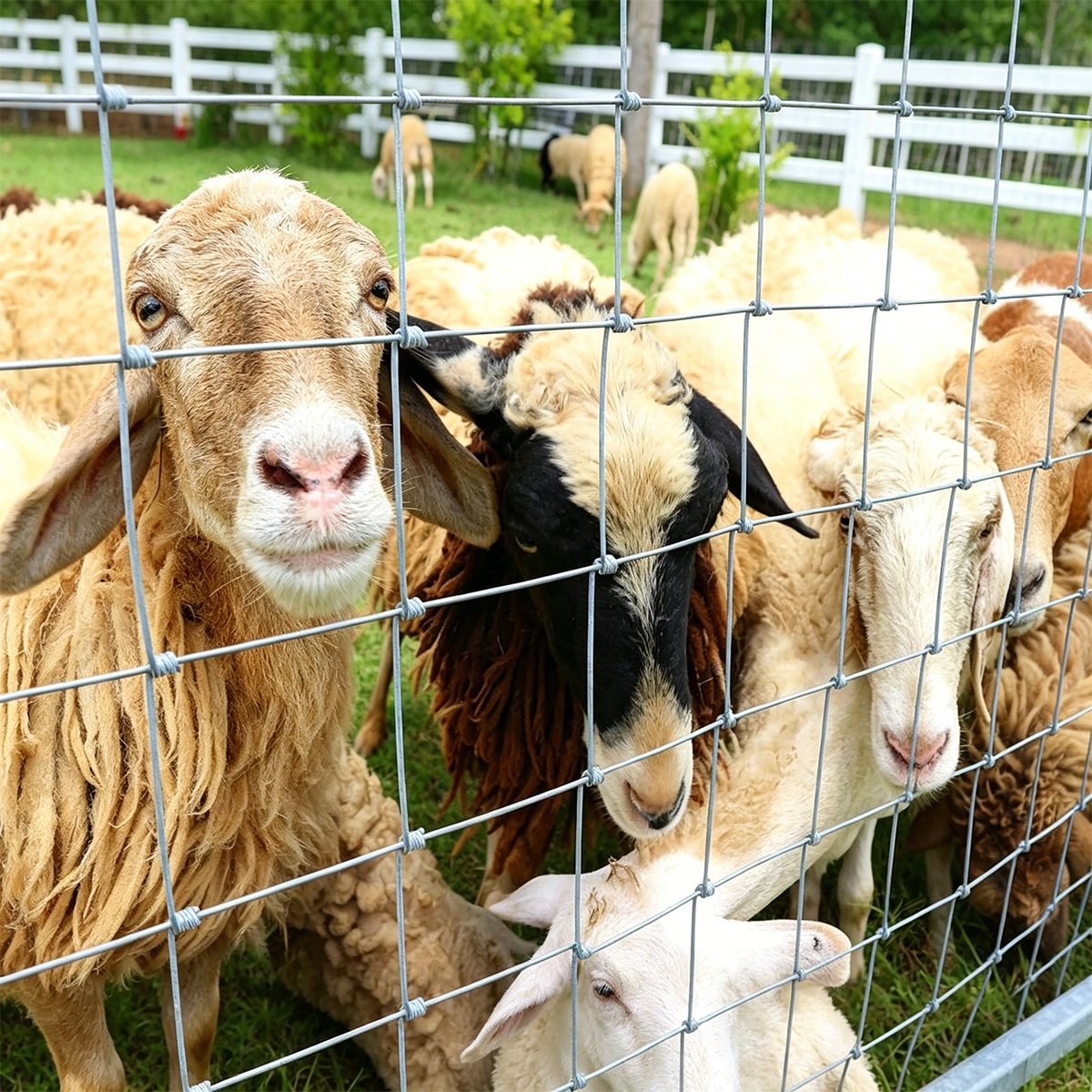

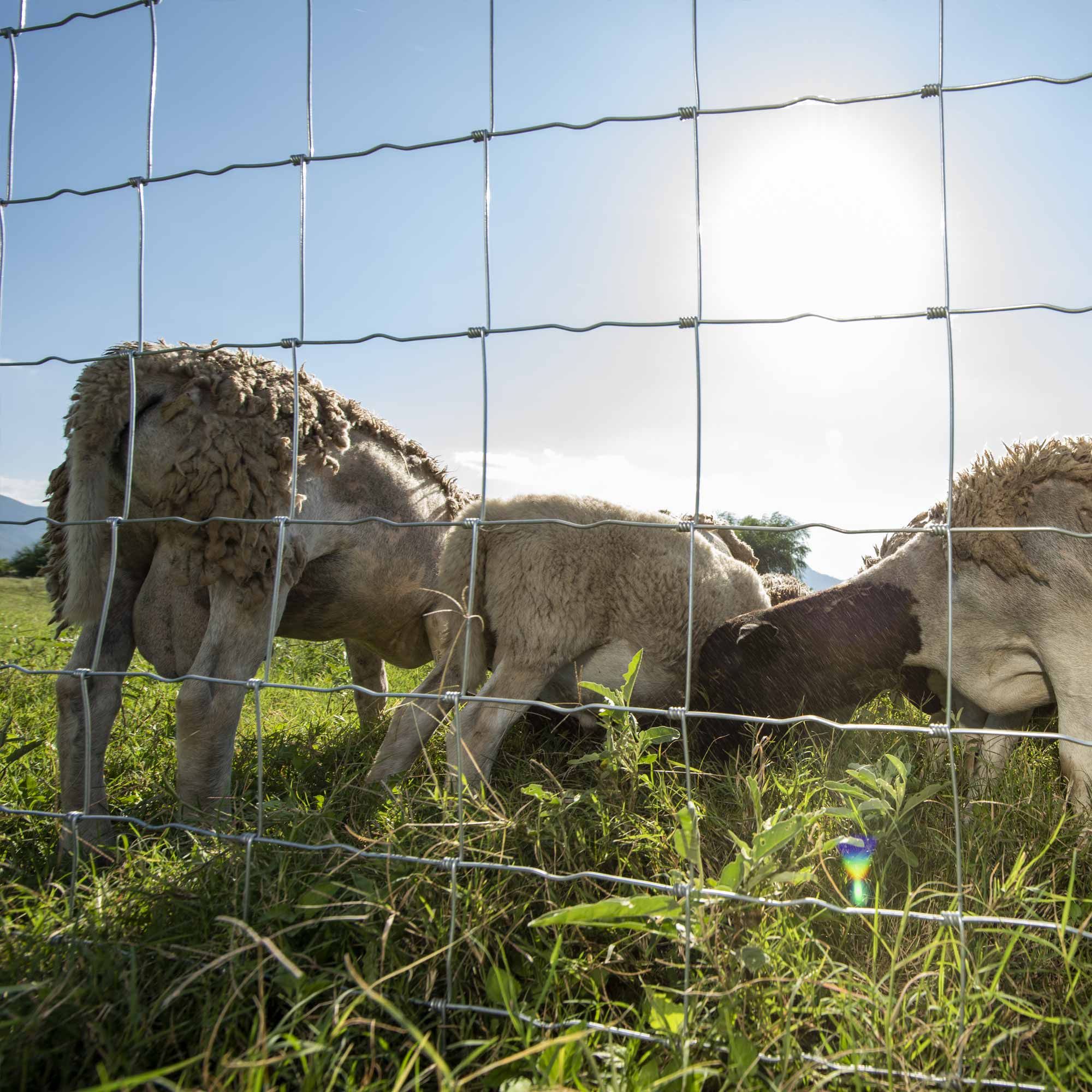

Sheep and Goats: Graduated mesh with a 75mm tight bottom opening keeps lambs contained and predators out.
Deer and Wildlife Control: 2.0-2.4m height creates an effective barrier for orchards, reforestation projects, and gardens.
Hills and Slopes: The flexible hinge joint design conforms to ground contours, avoiding buckling that occurs with rigid fences.
Property Boundaries and Large Ranches: Allows for post spacing up to 5-6m, reducing the total number of posts required and cutting installation costs.

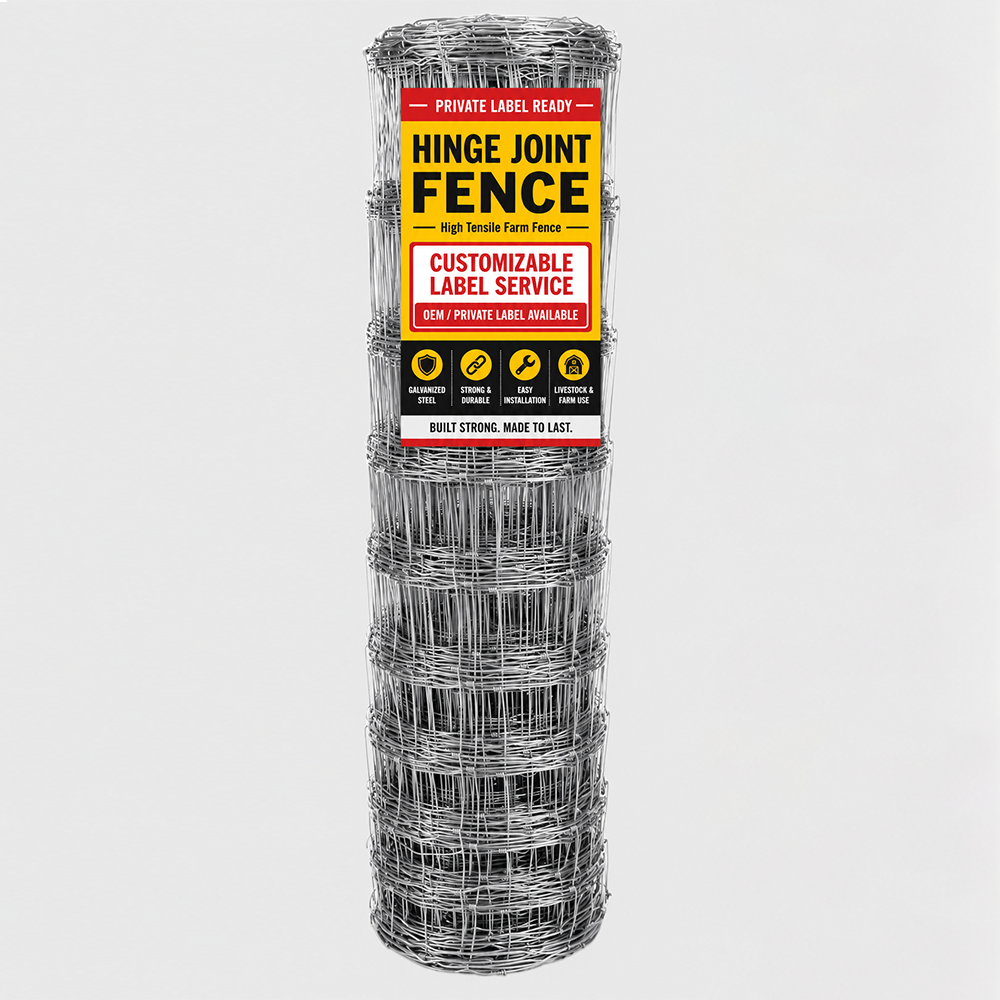

We offer full OEM and ODM services to meet diverse client requirements. Customizable aspects include fence height, roll length, wire diameter, mesh spacing, PVC coating colors, and private brand packaging. Private label service is available for brand owners and wholesale distributors.

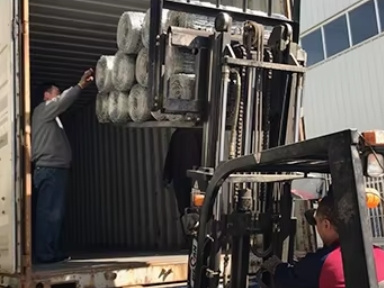

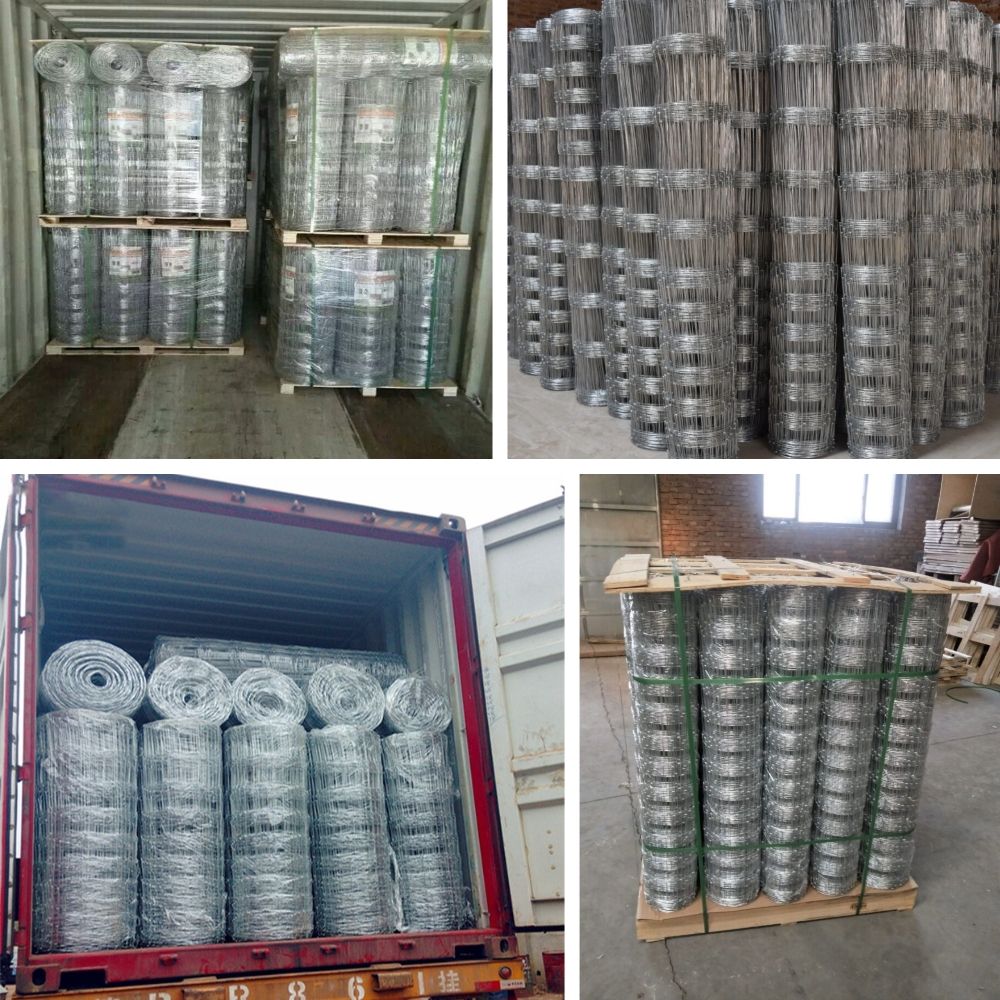

Each fence roll is tightly wound and wrapped in waterproof plastic film to prevent moisture damage. Rolls are stacked on fumigated wooden pallets with edge guards and secured with steel strapping. Custom labeling can be applied directly to packaging upon request. Loading is available at Tianjin, Qingdao, or Shanghai ports for flexible shipping arrangements.

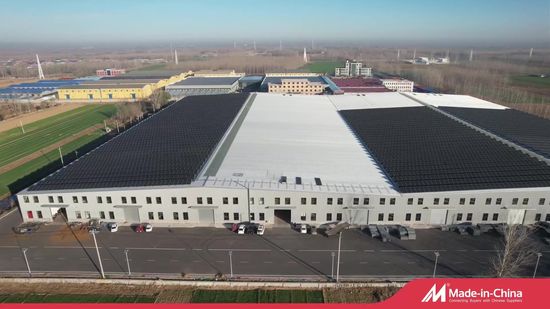

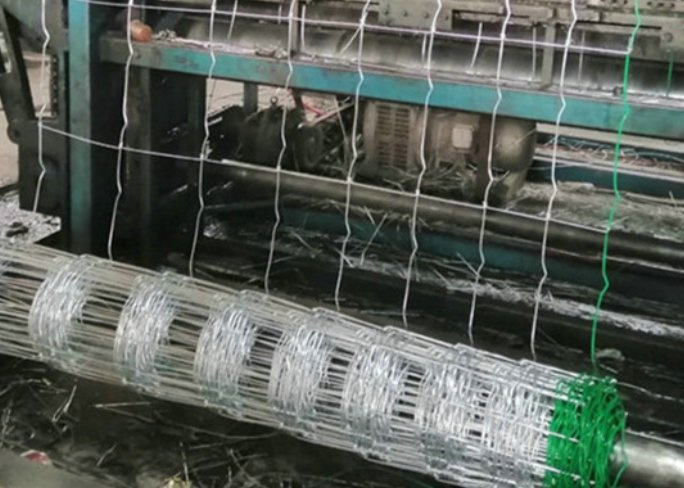

Zhejiang Kunyu Wiremesh Co., Ltd is a direct manufacturer located in Anping, Hebei, known as the "Wire Mesh Capital of China." With over 30 years of export experience in wire mesh fencing manufacturing, we have a dedicated international trade team serving clients across North America, Australia, Europe, and the Middle East. We hold ISO 9001:2015 certification, and every batch of products undergoes tensile strength, zinc coating, and dimension checks to ensure consistent performance.
We are a direct manufacturer located in Anping, Hebei. You are welcome to visit our factory at your convenience.
Hinge joint fence uses stay wires wrapped around line wires to form a flexible hinge, while fixed knot fence uses a separate knot wire to lock the joint rigidly. Hinge joint fence is more economical and better suited for rolling terrain, while fixed knot fence offers higher strength for heavy containment applications.
A small sample piece approximately 30×30 cm is free for quality evaluation. You only need to cover the courier fee, which is refundable with your first bulk order.
The standard minimum order quantity is 100 rolls. We also accept smaller trial orders of 20-50 rolls for new clients.
Yes, we offer full customization for fence height, roll length, wire diameter, mesh spacing, PVC coating colors, and private brand packaging.
