High-Tensile Galvanized Cattle Hinge Fence

Product Overview

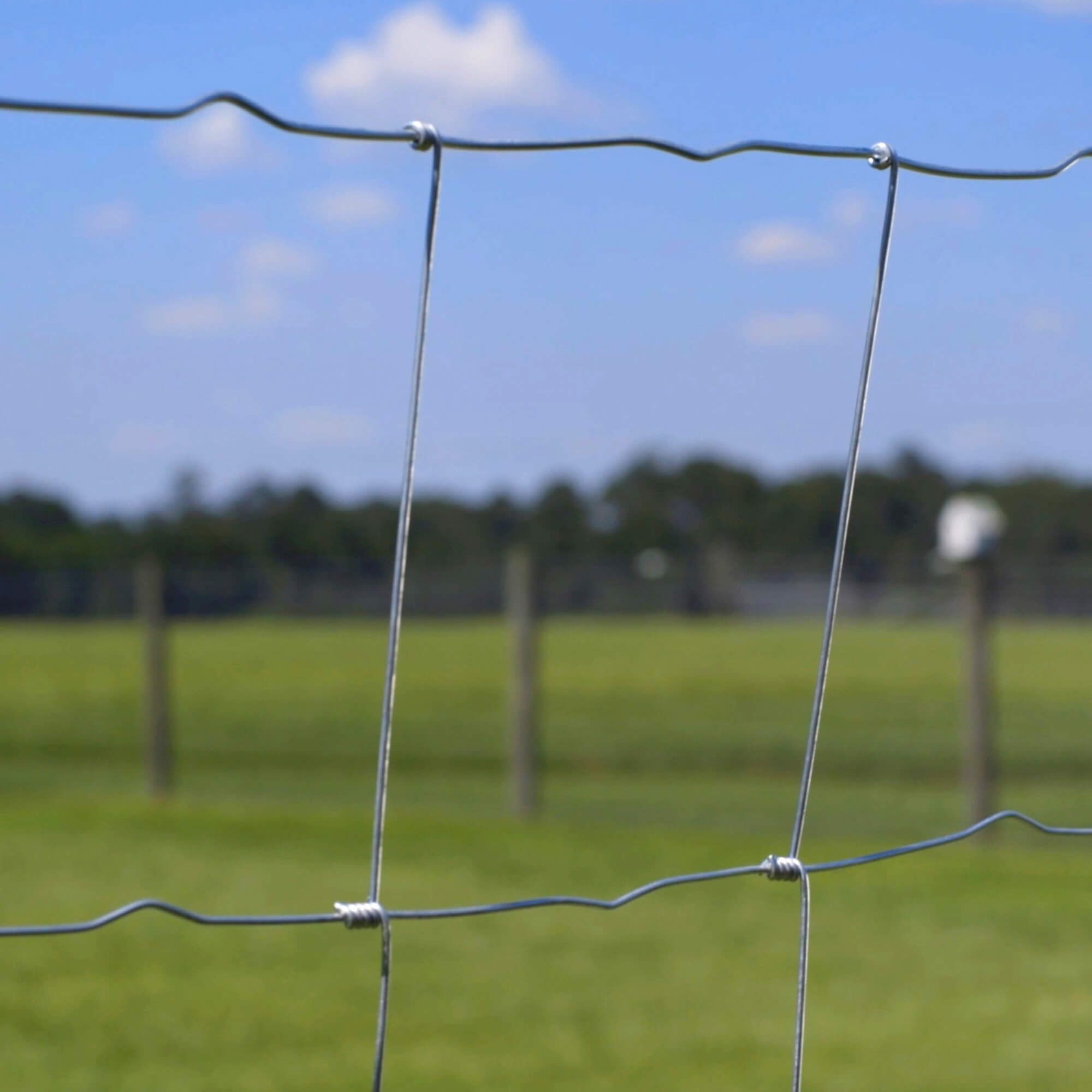

Cattle fence, also recognized as hinge joint fence or field fence, is a specialized agricultural fencing solution crafted to meet the unique needs of livestock containment. Built with high-tensile galvanized steel wires, this fence features innovative twisted hinge joints at every wire intersection, a design that lets the fence flex when subjected to animal impact or terrain changes and effortlessly spring back to its original form. Unlike rigid fencing options, it adapts seamlessly to diverse landscapes, from rolling hills to rocky pastures, without compromising structural stability. The combination of durable materials and flexible design makes it a reliable choice for farmers and ranchers looking to secure their cattle, horses, sheep, and other livestock while ensuring long-term performance in outdoor environments. Whether used in rotational grazing systems or permanent pastures, this agricultural fence prioritizes both animal safety and operational efficiency.

Core Advantages

Exceptional Durability

Crafted with high-tensile steel wires, the hinge joint fence resists stretching, sagging, and wear even in harsh outdoor conditions. The hot-dipped galvanization process adds a protective layer that shields the fence from corrosion, rust, and weather damage, ensuring a long service life without frequent replacements.

Superior Terrain Adaptability

The twisted hinge joint technology is the key to its unmatched flexibility. It allows the fence to contour to hills, slopes, and uneven ground, maintaining structural integrity without gaps or weak points. This adaptability also means the fence can expand and contract with temperature fluctuations, reducing stress on fence posts and extending the overall lifespan.

Enhanced Livestock Safety

Smooth wire surfaces eliminate the risk of cuts, scratches, or entanglement, keeping cattle, calves, and other livestock safe. The graduated mesh design—with smaller openings at the bottom—prevents small predators from entering while ensuring livestock cannot get stuck, balancing security with animal welfare.

Cost-Effective Installation & Maintenance

Requiring fewer posts compared to traditional fencing, the cattle fence reduces both material costs and installation time. Its low-maintenance nature means no regular painting or repairs are needed; occasional cleaning with water is sufficient to keep it in optimal condition, saving time and resources over the long term.

Versatile Functionality

Beyond cattle containment, this field fence works effectively for horses, sheep, goats, and even wildlife control. It can be easily combined with electric wires for added security, making it a versatile solution for various agricultural and rural applications.

Parameter Typical Range Notes

Core Materials

Constructed from high-tensile galvanized steel wires, with an optional UV-stabilized PVC coating for enhanced protection and aesthetics. The PVC coating is available in multiple colors to blend with different environments, while the galvanized base ensures resistance to moisture and chemicals.

Mesh & Structural Design

Features a graduated mesh pattern, with smaller mesh openings at the bottom for predator deterrence and larger openings at the top to reduce wind resistance. The hinge joint connections between vertical and horizontal wires are twisted for flexibility, ensuring the fence retains its shape after impact.

Dimensions & Customization

Available in various heights to accommodate different livestock sizes and containment needs. Roll lengths are customizable to fit specific project requirements, and wire diameters can be adjusted for high-traffic areas or larger animals. The fence is designed to meet industry standards for tensile strength and durability.

Surface Treatments

Hot-dipped galvanization is the standard surface treatment, providing superior corrosion resistance. The optional PVC coating adds an extra layer of protection against UV rays, chemicals, and physical damage, while enhancing the fence’s visual appeal.

Wire Diameter: 1.5–3.0 mm (high-tensile galvanized steel) Thicker wires (2.5–3.0 mm) for bulls or high-traffic areas

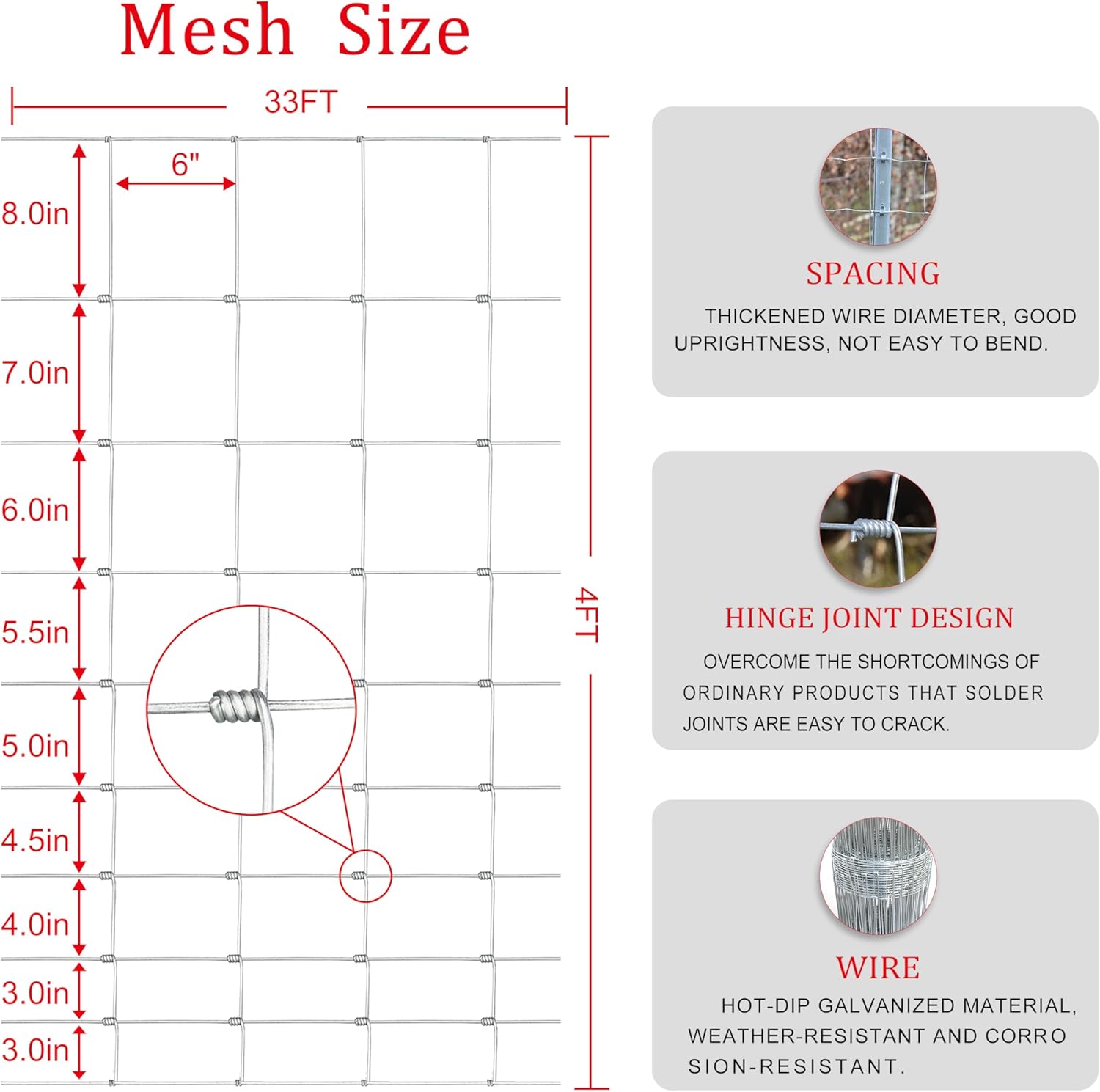

Mesh Size Bottom: 1.5" x 1.5" to 4" x 4"

Top: 6" x 6" to 12" x 12" Customizable for specific animal sizes

Height: 48"–72" (1.2–1.8 m) 72" recommended for bulls or wildlife

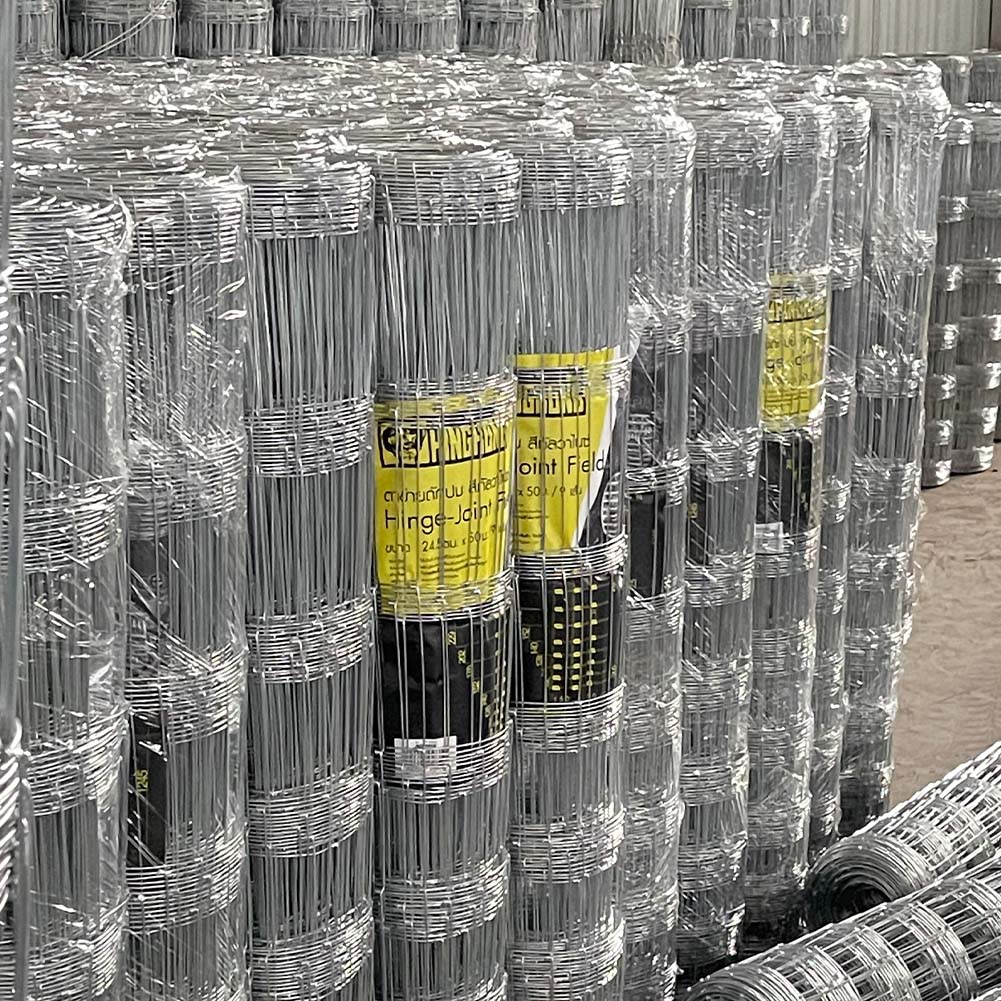

Roll Length: 50–200 meters Coils or cut-to-size sheets available

Surface Treatment: Hot-dipped galvanized

PVC-coated (optional) PVC colors: green, black, white

Tensile Strength Line wires: 750–850 N/mm²

Cross wires: 350–450 N/mm² Meets ASTM A123 standards

Livestock Containment

Cattle & Horses: Prevents escapes and fights, especially in rotational grazing systems.

Sheep & Goats: Smaller mesh (4" x 4") ensures containment without injury

Wildlife Management

Deters deer, feral hogs, and predators from damaging crops or pastures.

Used in wildlife sanctuaries to create safe zones.

Applications

Livestock Containment

Ideal for containing cattle in rotational grazing systems, preventing escapes and minimizing inter-animal conflicts. Suitable for horses, sheep, and goats, with mesh sizes tailored to prevent injury and ensure secure containment. Perfect for both small family farms and large commercial ranches.

Wildlife Management

Effective at deterring small predators like foxes and rabbits from entering livestock pastures, protecting young animals and reducing crop damage. Can be used in wildlife sanctuaries to create safe zones or control animal movement in protected areas.

Agricultural & Rural Uses

Compatible with electric wire integration for added security, making it suitable for areas with high predator activity. Works well in diverse rural settings, from open pastures to wooded areas, thanks to its terrain adaptability and durable construction.

FAQ

Q: Is the hinge joint cattle fence suitable for coastal areas?

A: Yes, the hot-dipped galvanized or optional PVC-coated variants are specifically designed to resist rust and corrosion in saltwater environments, making them ideal for coastal farms and ranches.

Q: Can this fence be installed on sloped terrain?

A: Absolutely. The twisted hinge joint design allows the fence to flex and contour to slopes, hills, and uneven ground without losing structural integrity, eliminating gaps that could lead to livestock escapes.

Q: Is the fence safe for calves and young livestock?

A: Yes. The smooth wire surfaces and small bottom mesh openings prevent entanglement and injury, ensuring calves, lambs, and other young animals are protected while contained.

Q: How does the hinge joint fence differ from fixed knot fences?

A: The hinge joint fence features flexible connections that absorb animal impact and adapt to terrain, while fixed knot fences have rigid joints for applications requiring minimal movement. This makes hinge joint fences better suited for rough or sloped landscapes.

Q: Do I need to paint or maintain the fence regularly?

A: No. The galvanized or PVC-coated surface requires minimal maintenance. Occasional rinsing with water to remove debris is enough to keep the fence in good condition, with no need for painting or frequent repairs.
