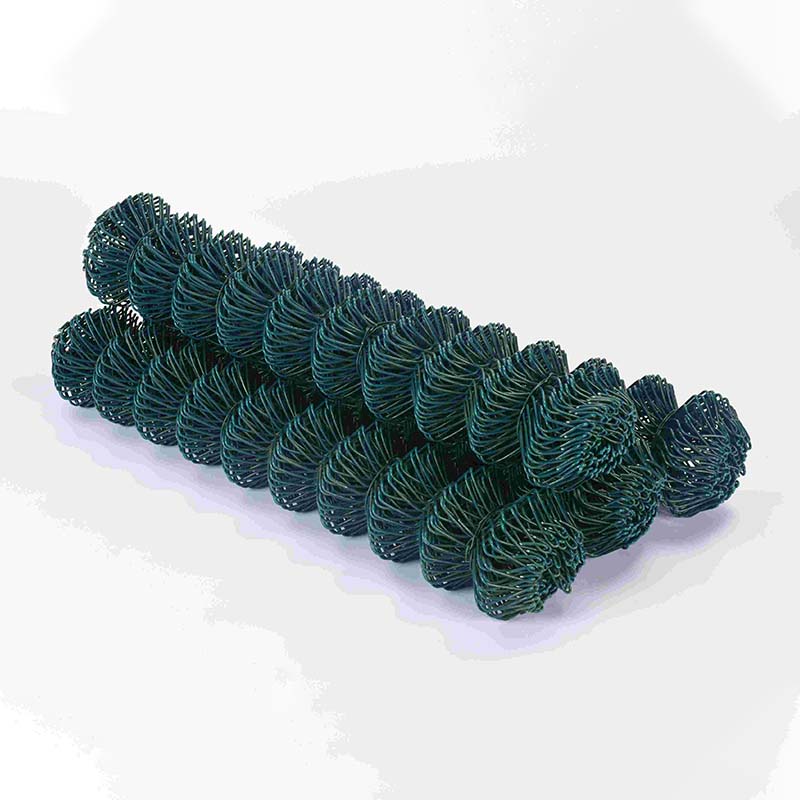

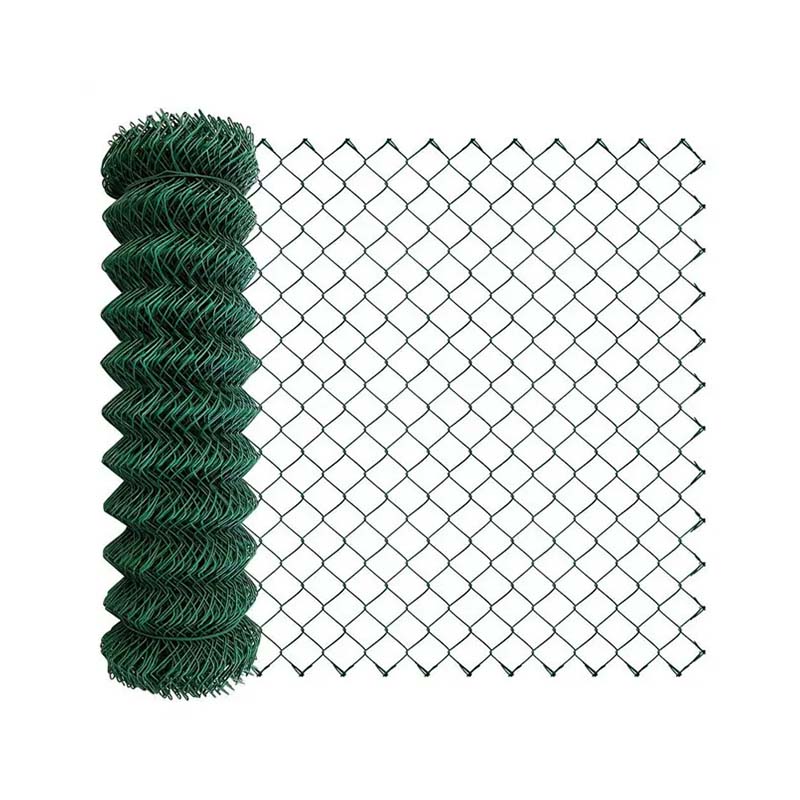

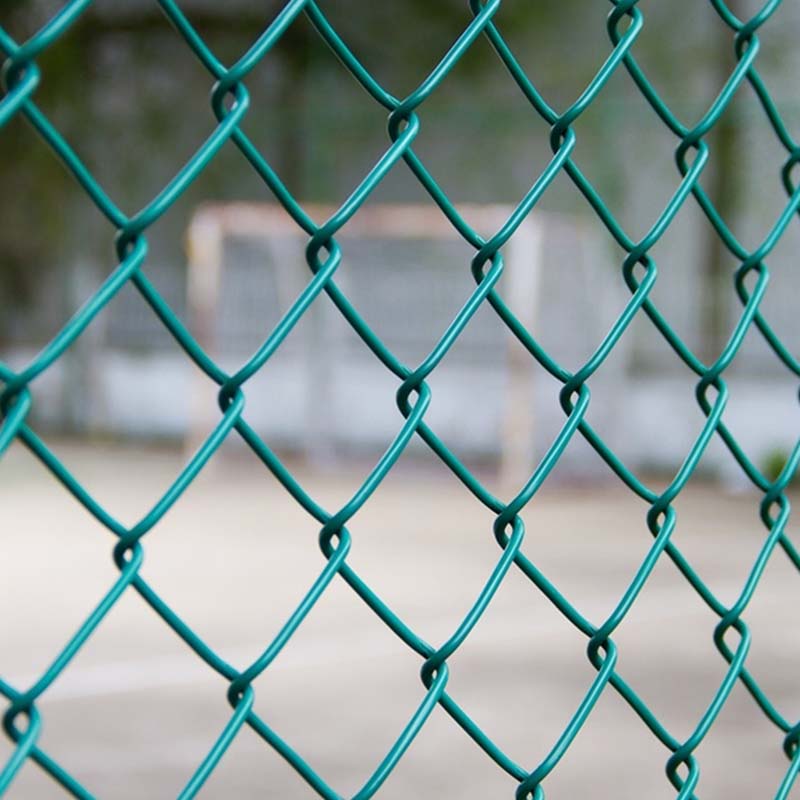

PVC Chain Link Mesh

1.Durability: PVC chain link mesh is highly durable. It can withstand harsh weather conditions, such as strong winds, heavy rain, and UV exposure, without significant damage, ensuring a long lifespan.

2.Corrosion Resistance:  Anti-corrosion pvc chain link mesh has excellent anti-corrosion properties, making it suitable for various environments, especially in areas with high humidity or near saltwater. This feature reduces maintenance costs and extends its usability.

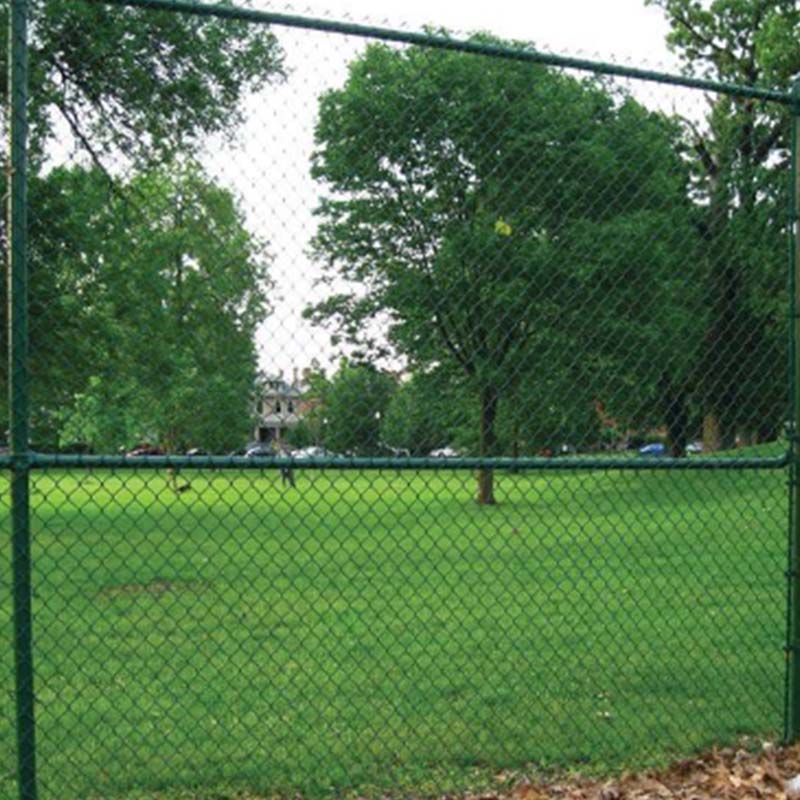

3.Security: For security fencing applications, pvc chain link mesh for security fencing provides a reliable barrier. The interlocking chain link design makes it difficult to penetrate, enhancing the security of the enclosed area.

4.Flexibility: The PVC material offers flexibility, allowing the mesh to be easily shaped and installed around curves or uneven surfaces, providing versatile installation options.

5.Decoration: Decorative PVC chain link mesh panels come in various colors and patterns, adding an aesthetic appeal to fences while maintaining functionality, suitable for both residential and commercial settings.

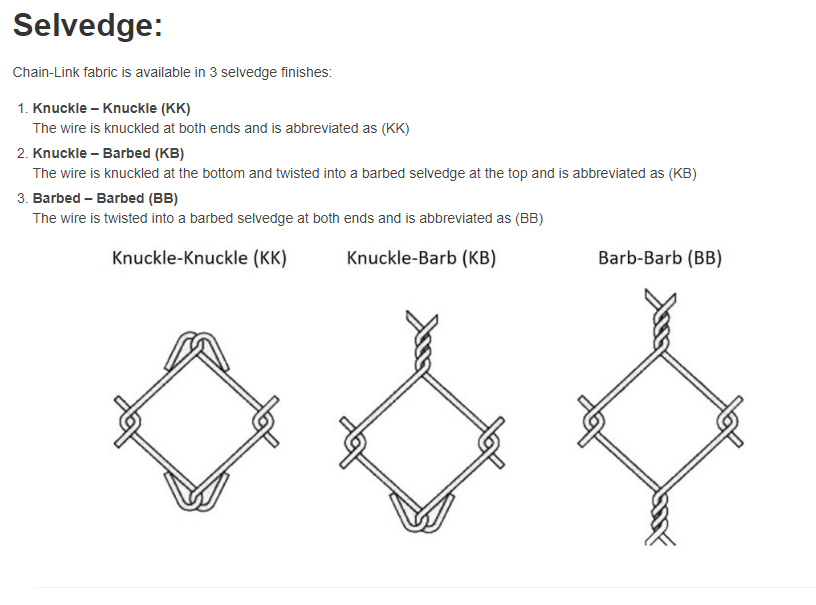

Mesh Edge

Plastic coated wire classification

Classification by material

①PVC wire：The PVC-coated wire is made of high-quality galvanized wire as the inner core and covered with PVC plastic on the outside. It has the characteristics of corrosion resistance, anti-aging, beautiful appearance, bright color, soft texture, non-flammability, and strong ultraviolet resistance. It is suitable for occasions with high requirements for aesthetics and durability, such as high-end sports venues and luxury residential areas.

②PE wire：The inner core of the PE-coated wire is usually galvanized wire, and the outside is covered with PE plastic. The PE-coated wire is relatively economical and affordable, and has good corrosion resistance and wear resistance. However, its color and softness are slightly inferior to those of the PVC-coated wire. It is often used in occasions with high cost requirements, such as the court fences in schools, parks and other public places.

③PP wire：Using polypropylene as the coating material, it has high strength and hardness and good heat resistance. It can maintain stable performance within a certain temperature range and is often used in occasions requiring high strength and heat resistance, such as industrial filtration and conveyor belts.

④Stainless steel wire plastic coated wire: made of stainless steel wire braided, with strong corrosion resistance, high strength, long service life and other characteristics, suitable for the occasion of high performance requirements of purse Seine.

⑤Galvanized plastic-coated wire: Through galvanized treatment, improve the corrosion resistance of plastic-coated wire, mainly used in construction, home, agriculture and other fields.

⑥Ordinary plastic-coated wire: usually used for packaging, binding, fixing and other occasions, with high tensile strength and flexibility

Classification by process

①Immersion-coated wire: After the metal wire is pretreated, it is placed in a fluidized bed of heated plastic powder or granules, so that the plastic powder or granules melt and adhere to the surface of the metal wire to form a plastic protective layer. The immersion-coated wire produced by the immersion process has the characteristics of thick coating, good anti-corrosion performance and full appearance. It is often used in products such as outdoor guardrails and hangers.

②Spray-coated wire: The plastic powder is sprayed on the pretreated metal wire surface by using a spray gun, and then the plastic powder is melted and solidified by heating to form a coating layer. The spraying process can achieve a variety of colors and effects, and the coating is uniform and beautiful. It is often used in products with high requirements for appearance, such as furniture and electrical enclosures.

③Extrusion-coated wire: The plastic granules are heated and melted by an extruder and then extruded and wrapped on the surface of the metal wire, and then cooled and shaped. The extrusion-coated wire has high production efficiency, strong bonding force between the plastic and the metal wire, and can produce various specifications and shapes of coated wires. It is widely used in products such as fences, screens and cable ties in the fields of construction, agriculture and industry.

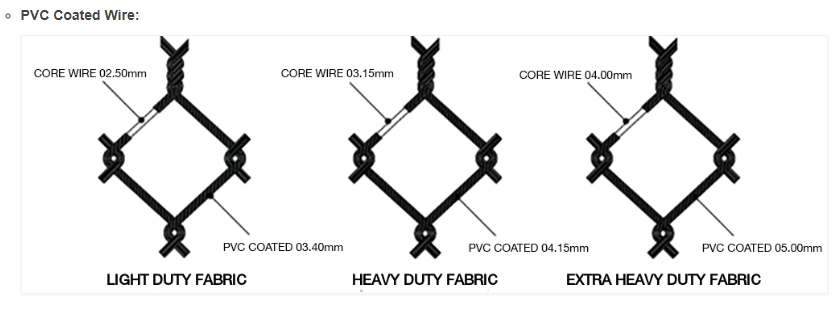

Mesh wire

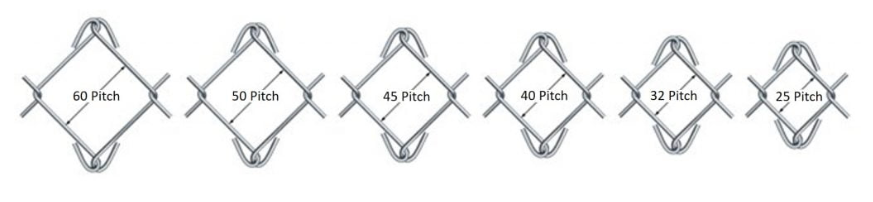

Mesh Standard Diamond (Pitch) Sizes (mm):

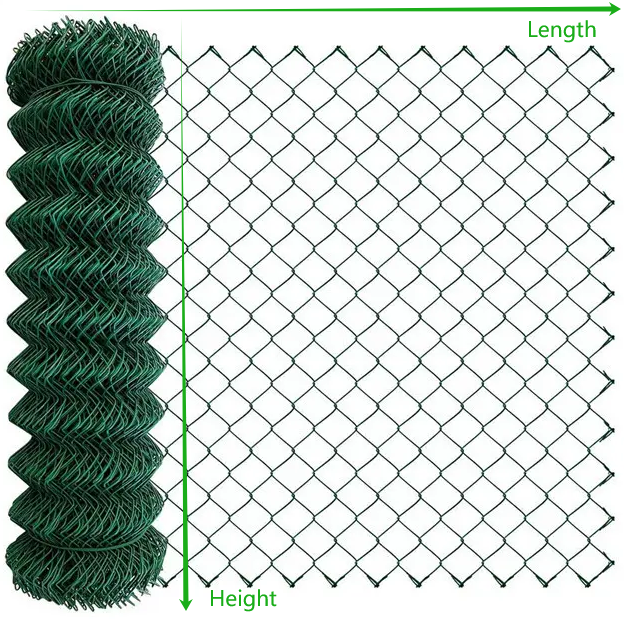

Mesh Height and length:

If you are matching an existing fence height and length, or not sure how the height of chain-link fabric is calculated, please see the below diagram for assistance.

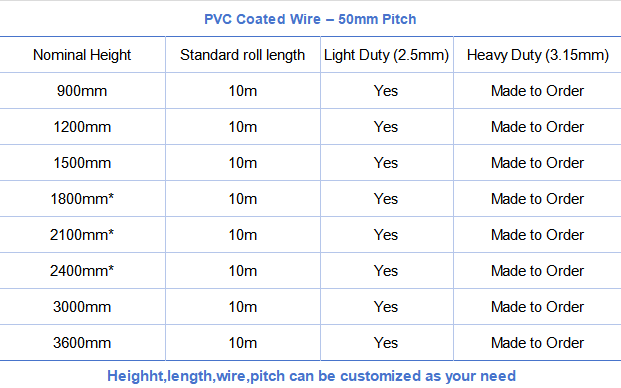

Common size table

Ordering Chain-Link Fabric:

When ordering Chain-Link fabric, to ensure we supply you with the correct material, please follow the below steps:

>> Length (meters) + Height (mm) + Pitch + Wire + Selvedge + Coating Finish

eg: 10 meters of 1500mm high, 50 pitch, 2.50mm wire, KB selvedge, PVC Green

Q: What are the specifications and parameters of the chain link mesh?

A: We offer various specs. Wire diameter ranges from 2-4mm. Mesh size is50-100mm.Rolls are 1-2m high and 10-30m long, meeting diverse needs.

Q: What are the features and advantages of your chain link mesh?

A: It has high tensile strength which is corosion-resistant. Easy to install andflexible for uses like fencing, suitable for different environm ents.

Q: What is the price of the chain link mesh? Are there any discounts available?

A: :The price depends on factors like quantity, specifications and materialGenerally, larger orders enjoy more favorable prices. We also offer various discounts,such as quantity discounts for bulk purchases and promotional discounts duringcertain periods, to provide the best value for our customers.

Q: What payment methods do you accept?

A: We accept T/T, L/C for large orders. For small ones, PayPal and credit cards.

This ensures flexible and secure payment options.

Q: How will the chain link mesh be shipped? What is the delivery time?

A: :By sea (30-40 days), air (3-7 days). Delivery time varies. We choose reliablecamiers to ensure on-time amival.
