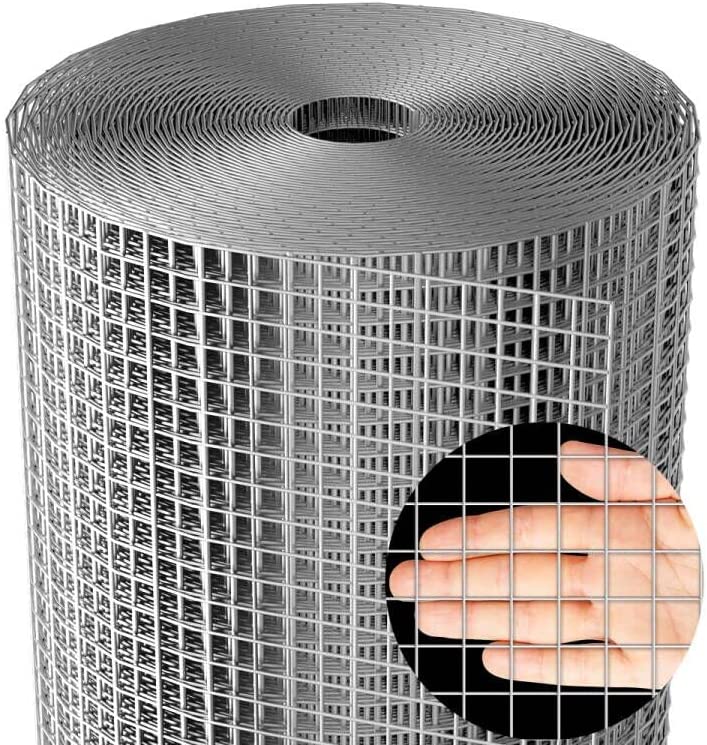

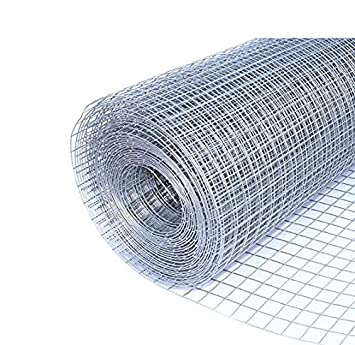

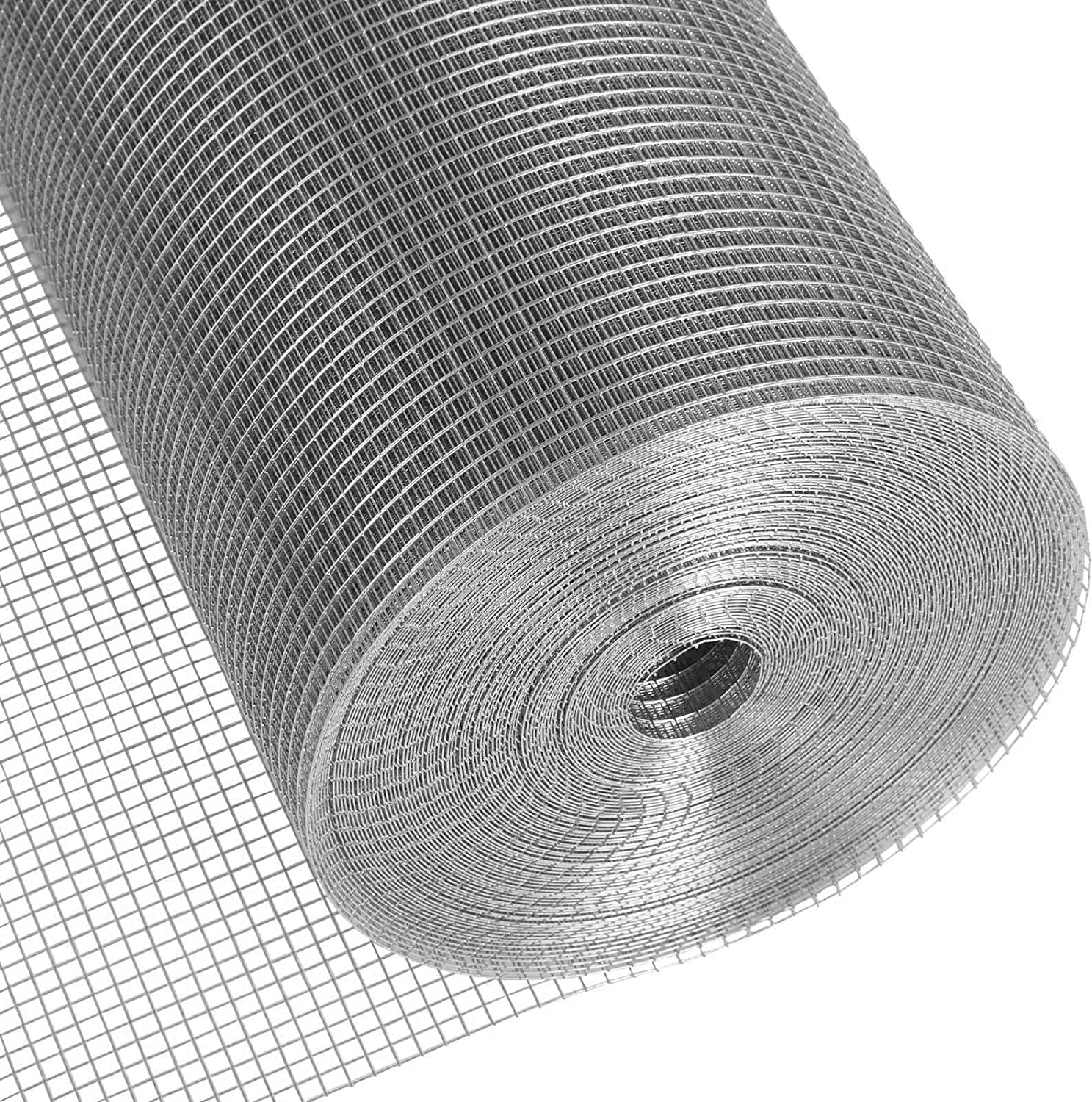

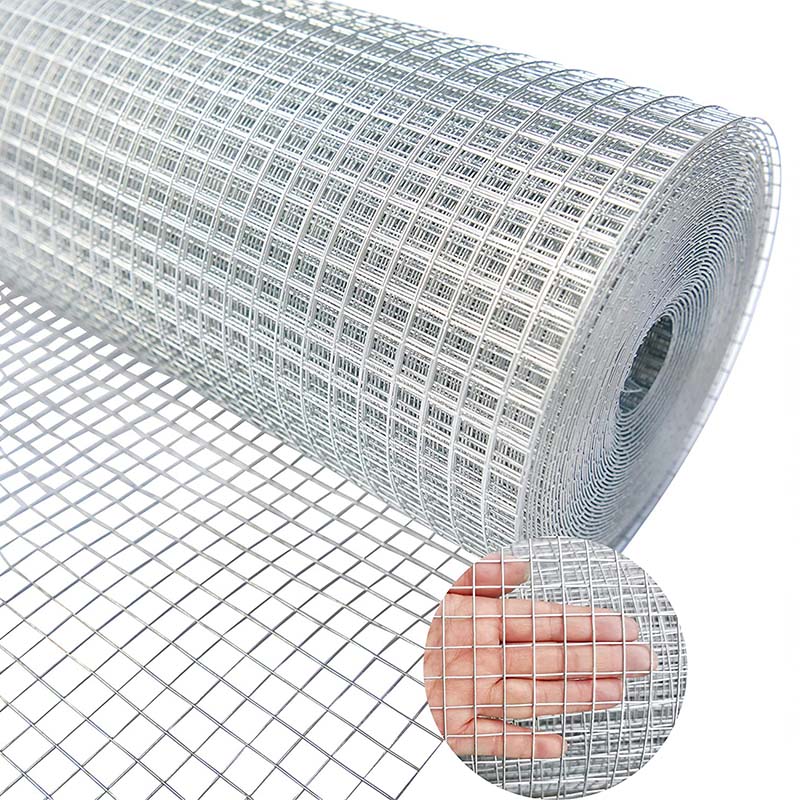

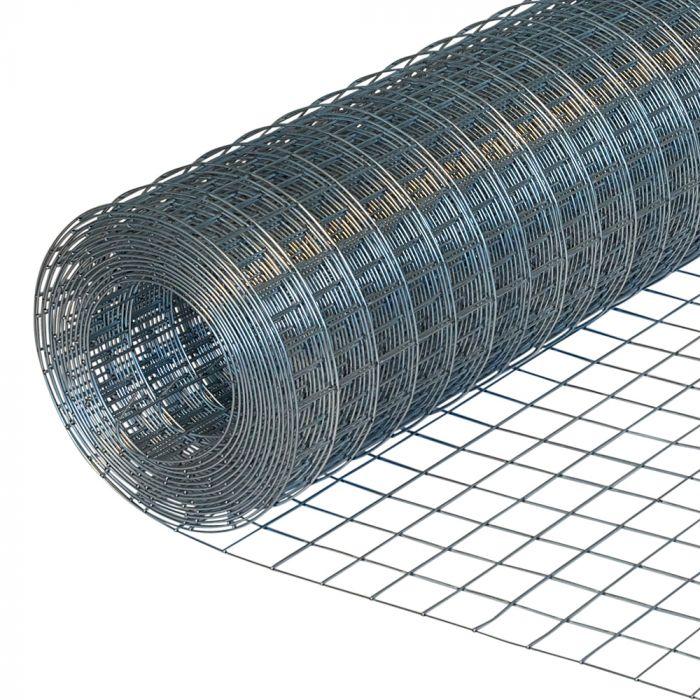

Galvanized Welded Mesh

1.Corrosion Resistance: The zinc coating provides excellent protection against corrosion. Whether it is used outdoors, in humid environments, or industrial settings with exposure to chemicals, the mesh can withstand the elements. This makes it suitable for long - term use in various applications. For example, in coastal areas where there is high humidity and salt in the air, galvanized welded mesh fences can last for many years without significant rusting.

2.Durability and Longevity: The welding process ensures that the wires are firmly bonded together, creating a strong and stable structure. The mesh can withstand mechanical stress, such as being bumped or pushed, without easily deforming or breaking. This durability leads to a long lifespan, reducing the need for frequent replacements. In construction projects, galvanized welded mesh used for concrete reinforcement helps to maintain the integrity of the concrete structure over time.

3.Cost - Effectiveness: Compared to some other materials with similar properties, galvanized welded mesh is relatively affordable. It offers a great balance between cost and performance. For both large - scale industrial projects and small - scale DIY home improvement tasks, it provides a cost - efficient solution. For instance, when building a small garden fence, galvanized welded mesh is a budget - friendly option that still offers good quality.

4.Ease of Installation: The mesh is lightweight and flexible, making it easy to handle and install. It can be cut to size easily using common tools, allowing for customization according to specific project requirements. Whether it is being installed by professional contractors or DIY enthusiasts, the installation process is straightforward. For example, installing a galvanized welded mesh fence can be done with basic tools and a little effort.

5.Versatility: With different wire diameters, opening sizes, and surface treatments available, galvanized welded mesh can be adapted to a wide range of applications. From fencing and enclosures to industrial machinery guards and gardening support structures, it offers a solution for diverse needs.

1.Wire Diameter: Can range from as small as 0.5 mm for more delicate applications, such as in some pest control meshes, to 10 mm or even larger for heavy - duty industrial and construction uses. Common diameters include 1.0 mm, 2.0 mm, and 5.0 mm.

2.Opening Size:

Square openings can be 1/4″, 1/3″, 3/8″, 1/2″, 5/8″, 3/4″, 1″, 2″, 3″, etc. For example, a 1/2″ square opening mesh is often used in general - purpose fencing.

Rectangular openings such as 1/4″ x 1/2″, 1/2″ x 1″, 1″ x 2″, etc. are available. A 1″ x 2″ rectangular opening might be used in applications where a different aspect ratio is required, like in some agricultural enclosures.

3.Width: The standard width is usually less than 2000 mm, but it can be customized according to project needs. Some common widths are 1000 mm and 1500 mm, which are convenient for many fencing and screening applications.

4.Length: The mesh can be supplied in coils or cut to specific lengths. Coils can be 10 m, 15 m, 20 m, 25 m, 30 m, or 30.5 m long. Custom - cut sheets can be made to fit the exact dimensions required for a particular project.

5.Surface Treatment:

Electro - galvanized: This process involves depositing a thin layer of zinc on the mesh through an electrochemical reaction. It provides a smooth and uniform finish and is suitable for applications where a moderate level of corrosion resistance is needed.

Hot - dipped galvanized: The mesh is dipped into a bath of molten zinc, resulting in a thicker and more durable zinc coating. This offers superior corrosion resistance and is ideal for outdoor and harsh - environment applications.

1.What is the difference between electro - galvanized and hot - dipped galvanized welded mesh?

Electro - galvanized mesh has a thinner zinc coating applied through an electrochemical process. It offers a smooth finish and is suitable for less - demanding environments where a moderate level of corrosion resistance is sufficient. Hot - dipped galvanized mesh, on the other hand, has a thicker zinc coating obtained by dipping the mesh into molten zinc. This provides superior corrosion resistance and is ideal for outdoor and harsh - environment applications where long - term durability is crucial.

2.Can the galvanized welded mesh be painted?

Yes, it can be painted. However, it is important to properly prepare the surface of the galvanized mesh before painting. This usually involves cleaning the mesh to remove any dirt, grease, or zinc oxide layer. Using a primer specifically designed for galvanized surfaces is recommended, followed by the application of the desired paint. Painting can further enhance the aesthetic appearance and provide an additional layer of protection, especially in environments where the zinc coating may not be enough.

3.How do I choose the right wire diameter and opening size for my application?

If you need a mesh for light - duty applications such as small - scale gardening or pest control, a smaller wire diameter (e.g., 0.5 - 1.0 mm) and smaller opening sizes (e.g., 1/4″ - 1/2″ square) would be suitable. For heavy - duty applications like industrial fencing or concrete reinforcement, larger wire diameters (e.g., 5 - 10 mm) and larger opening sizes (e.g., 1 - 3″ square or appropriate rectangular sizes) are required. Consider the amount of stress the mesh will need to withstand, the size of the objects or animals it needs to contain or protect, and the overall purpose of the application.

4.Is galvanized welded mesh safe for use around food?

Galvanized welded mesh is generally not recommended for direct contact with food. The zinc coating may leach into the food over time, especially in acidic or moist conditions. However, if it is used in applications where it is not in direct contact with food, such as in the construction of food storage area enclosures or non - contact food - processing machinery guards, it can be safely used.
