Welded Mesh


Availability:

Quantity:



Inquire Add to Basket

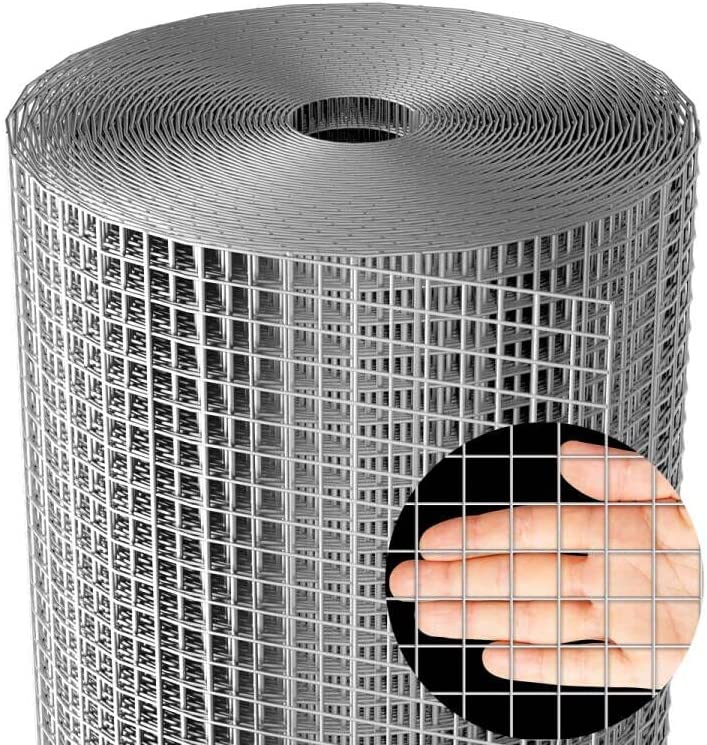

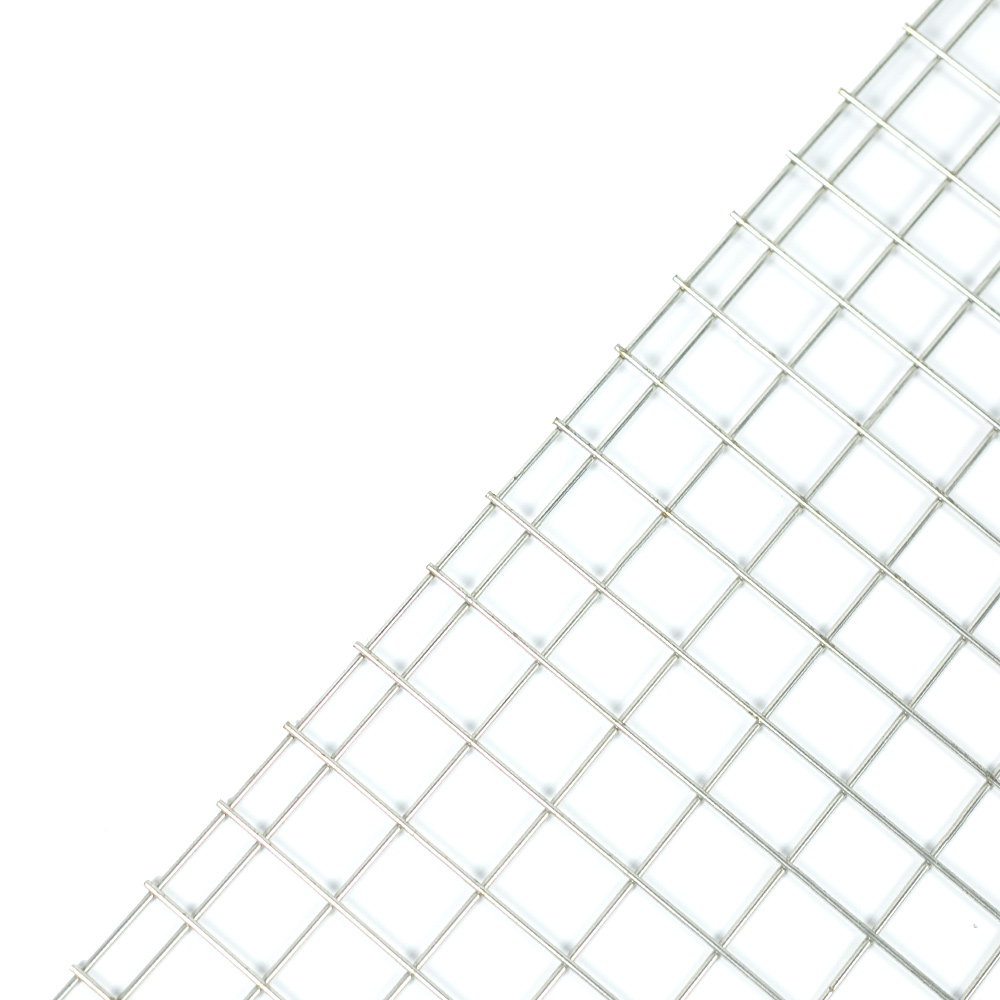

Galvanized welded mesh, also known as welded wire mesh, is crafted by resistance - welding wire strands at each intersection. This process results in a grid - like structure with square or rectangular openings. It is typically made from materials such as carbon steel (mild steel), and stainless steel. The most common material used is low - carbon steel, which is then given a protective zinc coating. The zinc coating can be applied through either electro - galvanizing or hot - dipped galvanizing methods.

Key Features

1. Corrosion Resistance

The zinc coating provides excellent protection against corrosion. Whether it is used outdoors, in humid environments, or industrial settings with exposure to chemicals, the mesh can withstand the elements. This makes it suitable for long - term use in various applications. For example, in coastal areas where there is high humidity and salt in the air, galvanized welded mesh fences can last for many years without significant rusting.

2.Durability and Longevity

The welding process ensures that the wires are firmly bonded together, creating a strong and stable structure. The mesh can withstand mechanical stress, such as being bumped or pushed, without easily deforming or breaking. This durability leads to a long lifespan, reducing the need for frequent replacements. In construction projects, galvanized welded mesh used for concrete reinforcement helps to maintain the integrity of the concrete structure over time.

3. Cost - Effectiveness

Compared to some other materials with similar properties, galvanized welded mesh is relatively affordable. It offers a great balance between cost and performance. For both large - scale industrial projects and small - scale DIY home improvement tasks, it provides a cost - efficient solution. For instance, when building a small garden fence, galvanized welded mesh is a budget - friendly option that still offers good quality.

4.Ease of Installation

The mesh is lightweight and flexible, making it easy to handle and install. It can be cut to size easily using common tools, allowing for customization according to specific project requirements. Whether it is being installed by professional contractors or DIY enthusiasts, the installation process is straightforward. For example, installing a galvanized welded mesh fence can be done with basic tools and a little effort.

5.Versatility

With different wire diameters, opening sizes, and surface treatments available, galvanized welded mesh can be adapted to a wide range of applications. From fencing and enclosures to industrial machinery guards and gardening support structures, it offers a solution for diverse needs.

Technical Parameters

Parameter	Specifications & Details	Application Examples
Wire Diameter	Range: 0.5 mm (delicate applications) to 10 mm+ (heavy-duty industrial/construction uses); Common diameters: 1.0 mm, 2.0 mm, 5.0 mm	0.5 mm for pest control meshes; 10 mm+ for industrial/construction projects
Opening Size	Square openings: 1/4″, 1/3″, 3/8″, 1/2″, 5/8″, 3/4″, 1″, 2″, 3″, etc.; Rectangular openings: 1/4″ x 1/2″, 1/2″ x 1″, 1″ x 2″, etc.	1/2″ square opening for general-purpose fencing; 1″ x 2″ rectangular opening for agricultural enclosures
Width	Standard width: ≤2000 mm; Common widths: 1000 mm, 1500 mm; Customizable per project needs	1000 mm/1500 mm for fencing and industry applications

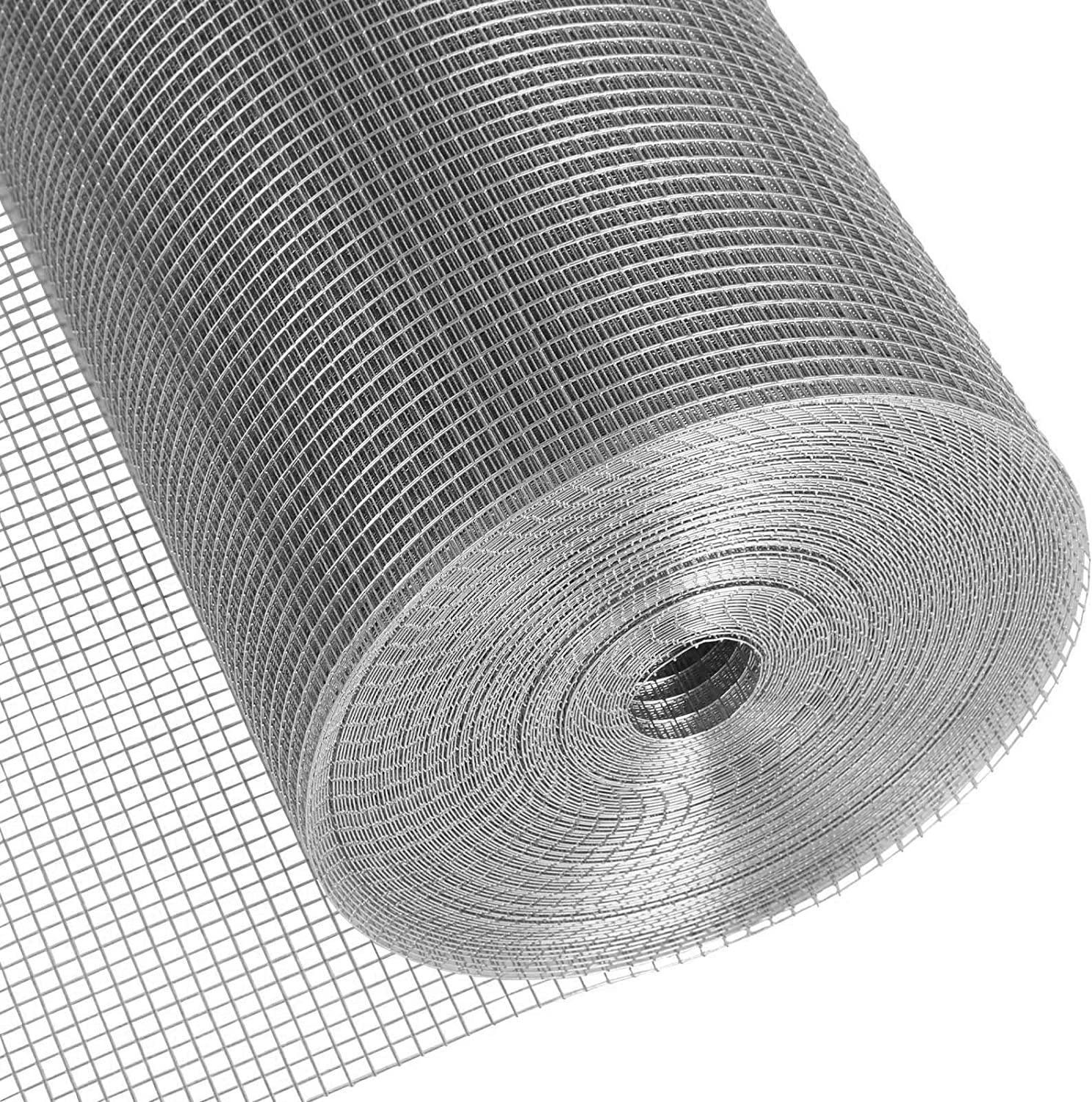

Length	Supplied as coils or custom-cut sheets; Coil lengths: 10 m, 15 m, 20 m, 25 m, 30 m, 30.5 m; Custom-cut to exact project dimensions	Coils for large-area construction; Custom-cut sheets for specific size requirements
Surface Treatment	1. Electro-galvanized: Thin zinc layer via electrochemical reaction, smooth/uniform finish; 2. Hot-dipped galvanized: Thick/durable zinc coating from molten zinc bath	Electro-galvanized for moderate corrosion resistance; Hot-dipped galvanized for outdoor/harsh environments

Applications / Projects

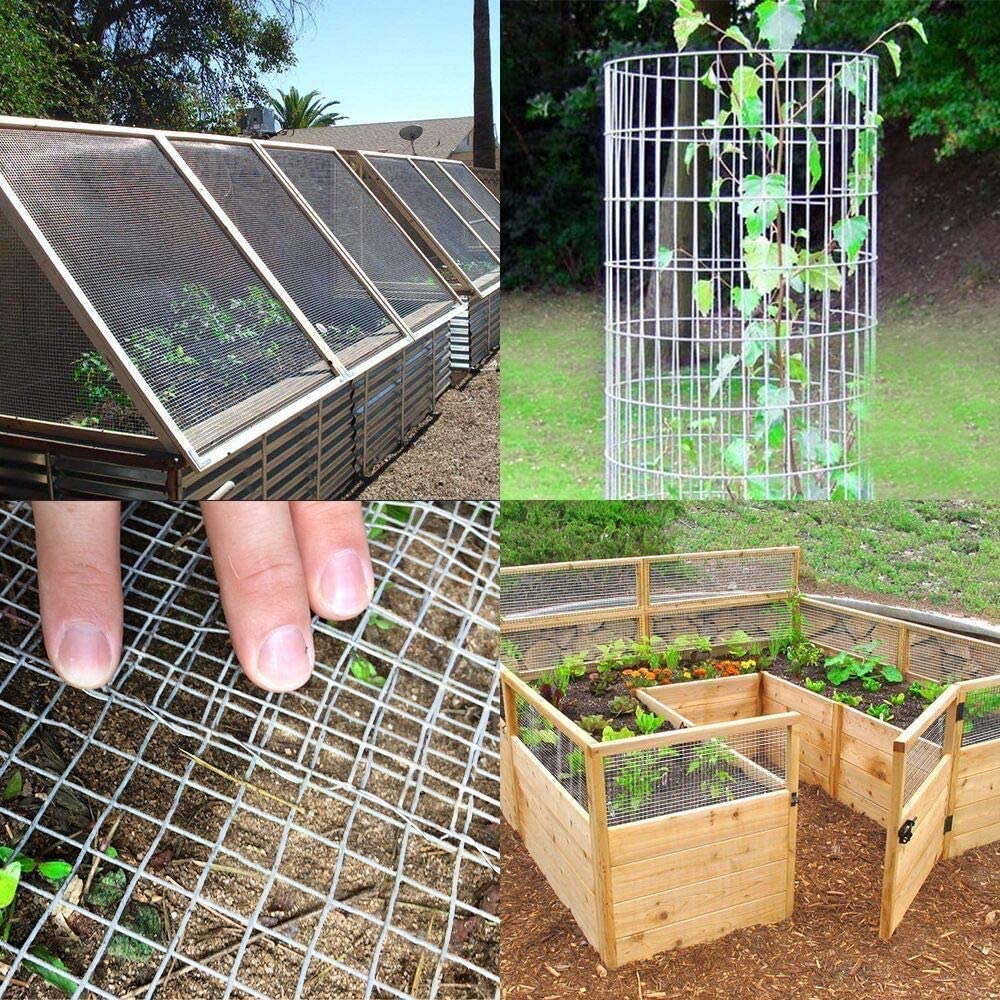

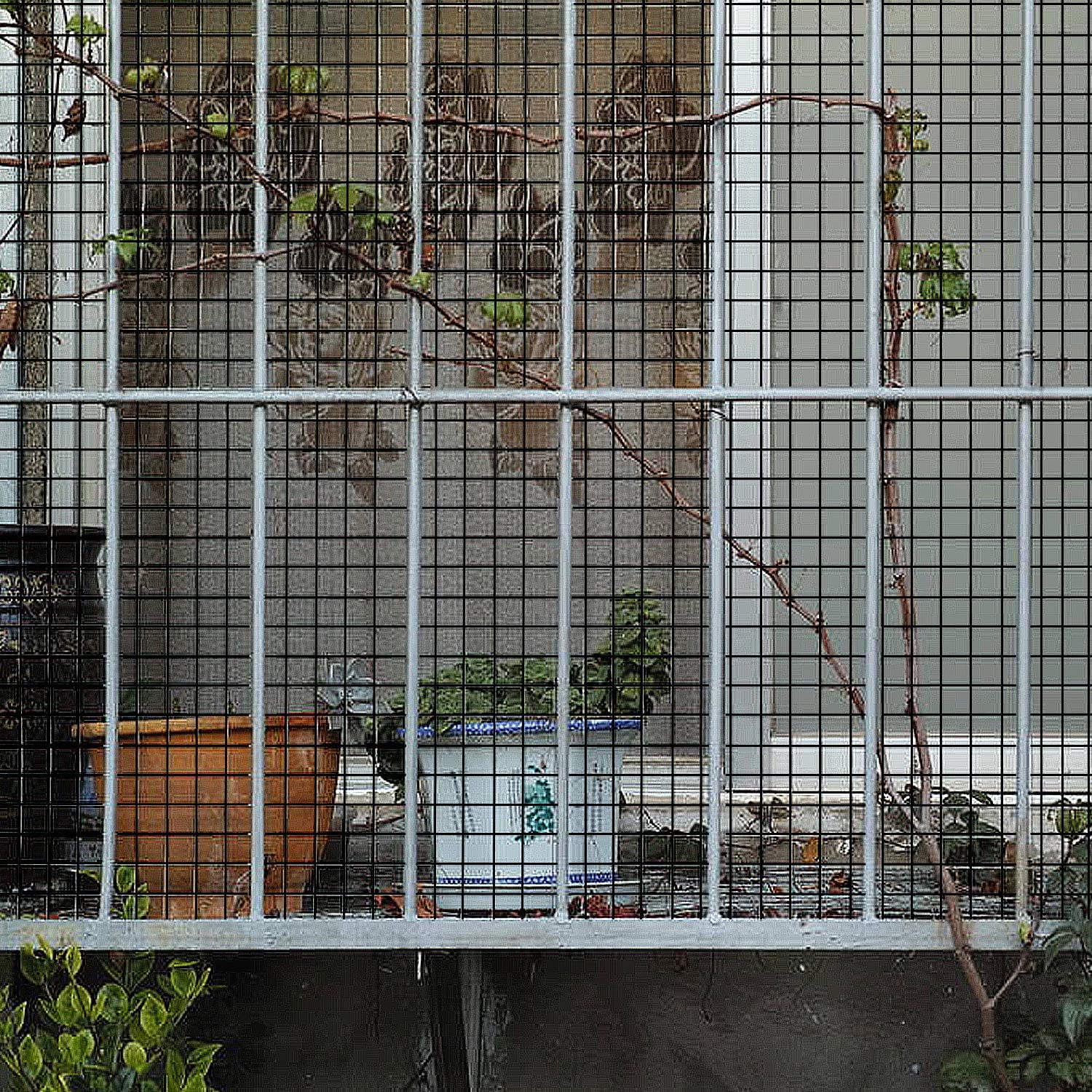

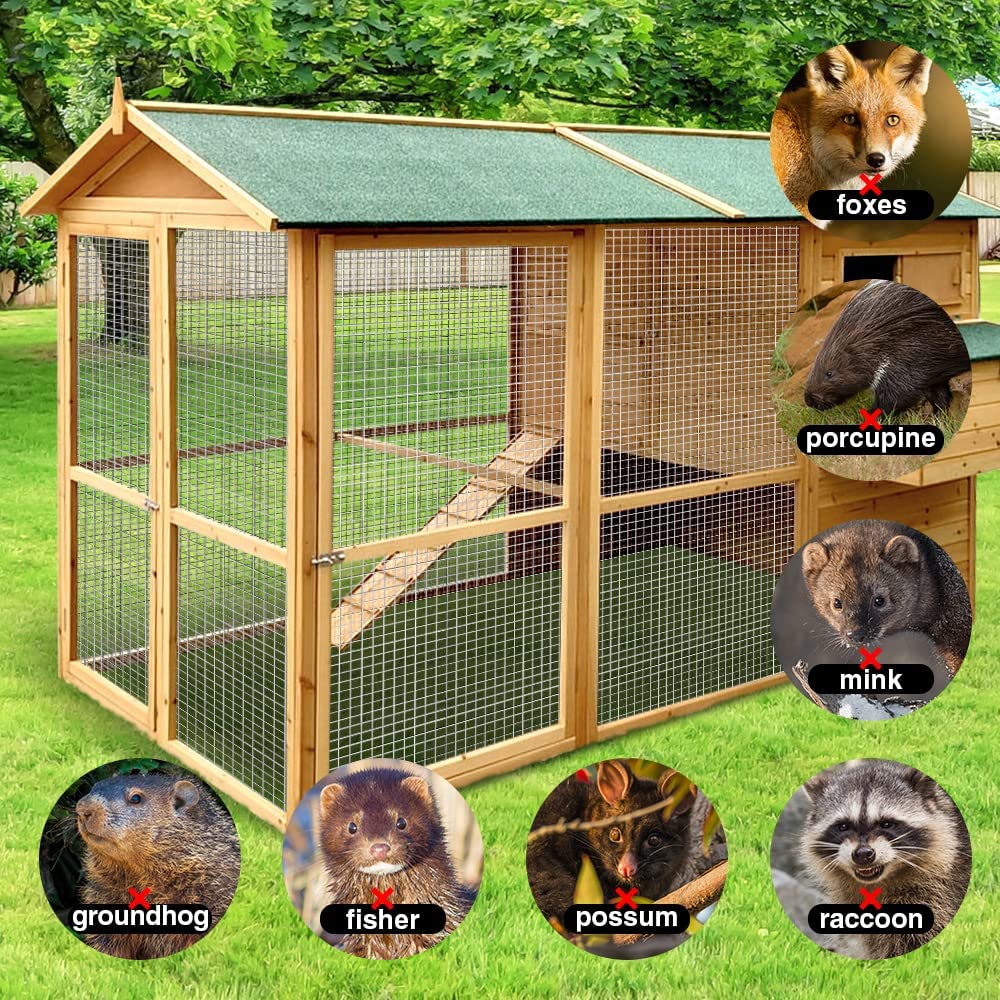

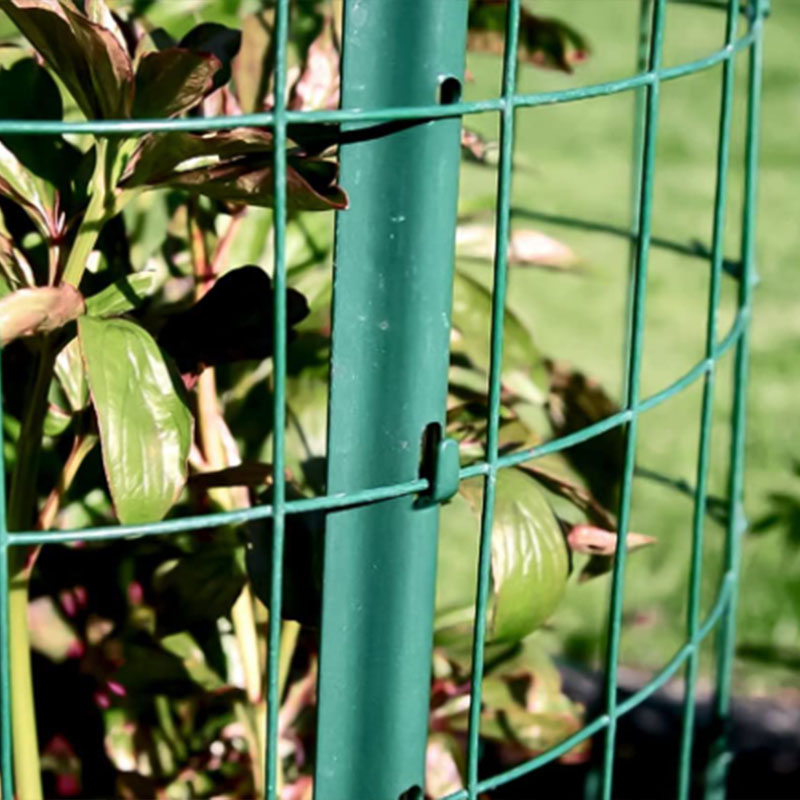

Welded mesh is used for residential/commercial fencing, concrete reinforcement, industrial machinery guards, garden enclosures, and security barriers across construction, agriculture, and DIY projects.

Packaging & Shipping

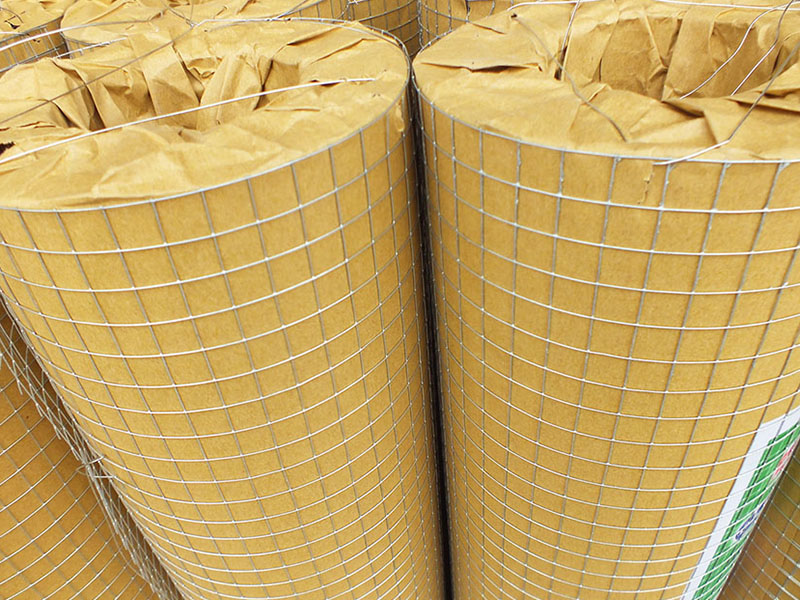

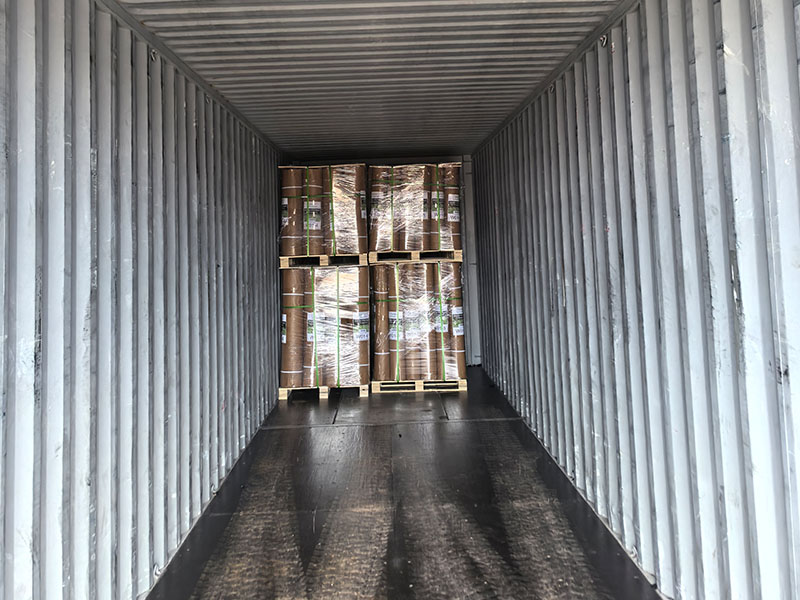

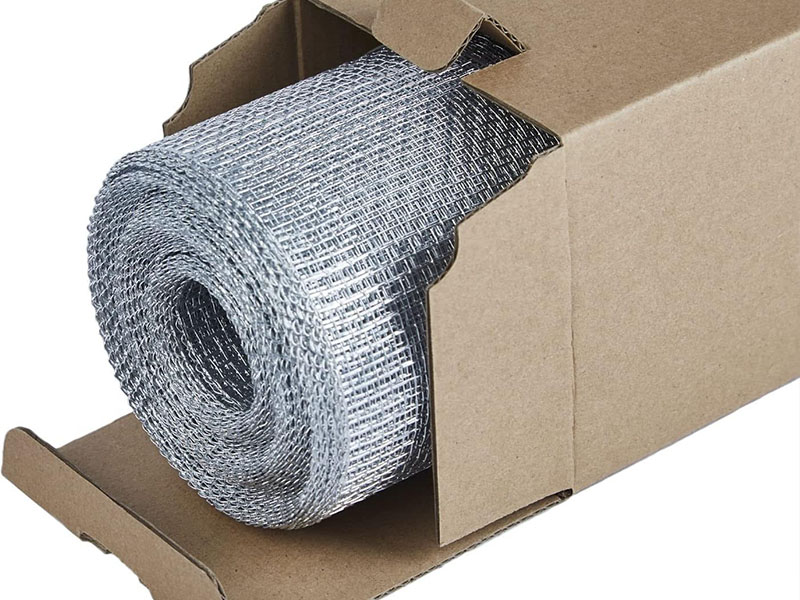

Welded mesh packing focuses on transit protection. Each roll of welded mesh is tightly wound, wrapped in moisture-proof plastic to shield welded mesh from rust. Bundled with sturdy straps, welded mesh rolls stay intact during shipping.

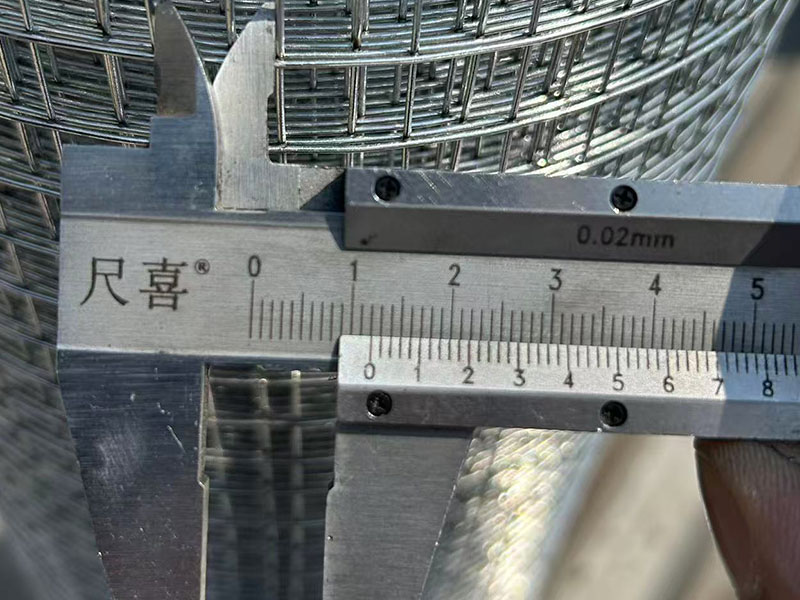

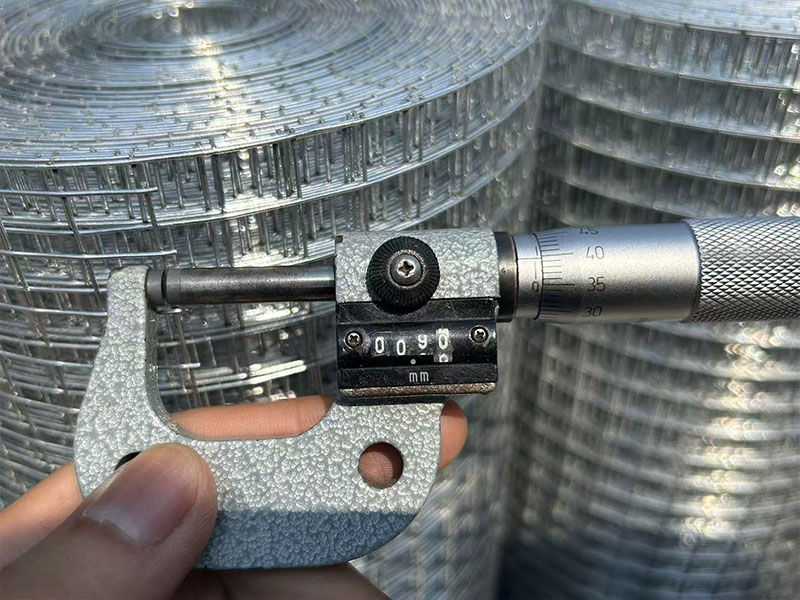

Inspection of welded mesh is strict: check weld firmness, wire thickness, and coating adherence. Verify mesh opening uniformity and dimensions. Reject welded mesh with loose welds or defects. Qualified welded mesh guarantees reliability for varied uses.

FAQ

1.What is the difference between electro - galvanized and hot - dipped galvanized welded mesh?

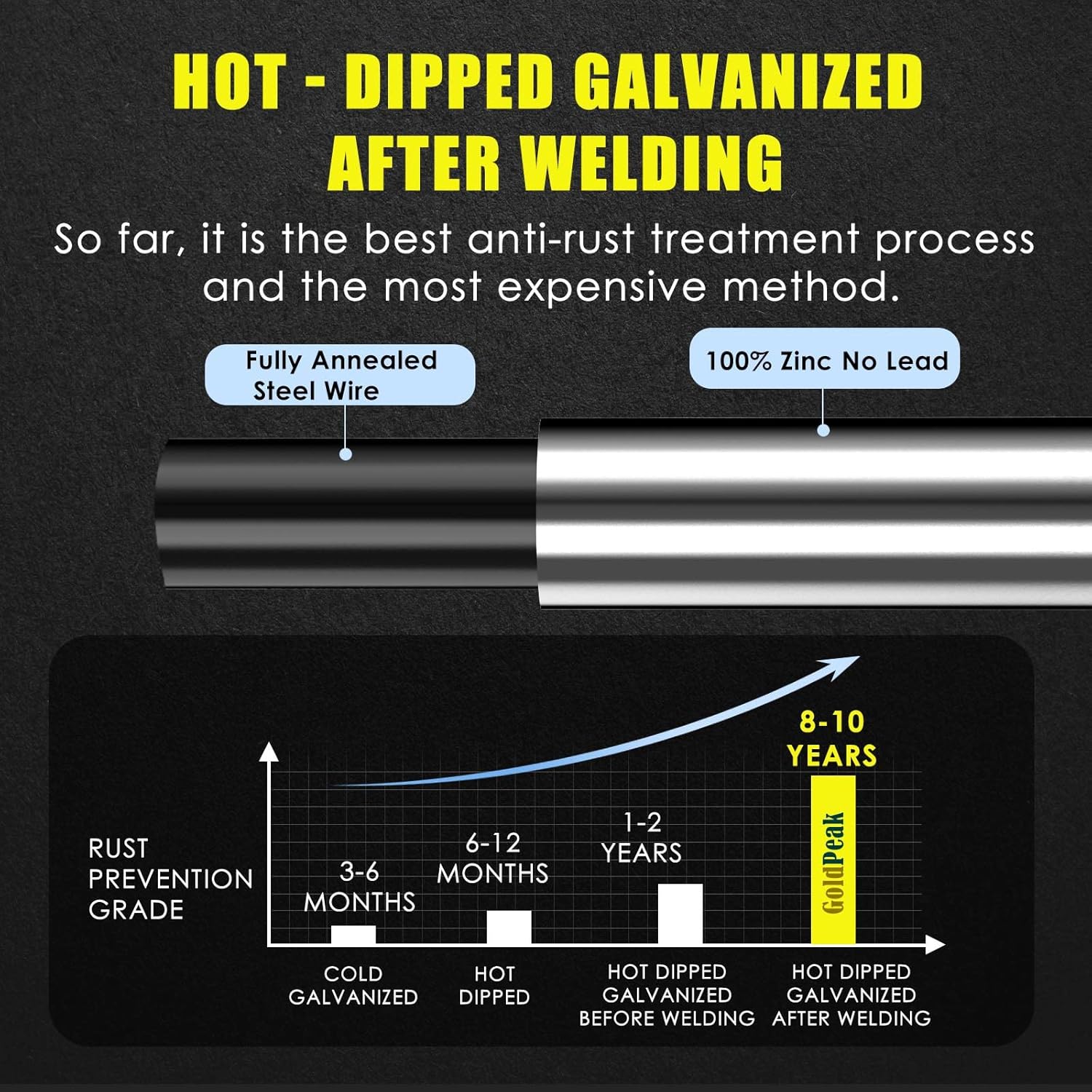

Electro - galvanized mesh has a thinner zinc coating applied through an electrochemical process. It offers a smooth finish and is suitable for less - demanding environments where a moderate level of corrosion resistance is sufficient. Hot - dipped galvanized mesh, on the other hand, has a thicker zinc coating obtained by dipping the mesh into molten zinc. This provides superior corrosion resistance and is ideal for outdoor and harsh - environment applications where long - term durability is crucial.

2.Can the galvanized welded mesh be painted?

Yes, it can be painted. However, it is important to properly prepare the surface of the galvanized mesh before painting. This usually involves cleaning the mesh to remove any dirt, grease, or zinc oxide layer. Using a primer specifically designed for galvanized surfaces is recommended, followed by the application of the desired paint. Painting can further enhance the aesthetic appearance and provide an additional layer of protection, especially in environments where the zinc coating may not be enough.

3.How do I choose the right wire diameter and opening size for my application?

If you need a mesh for light - duty applications such as small - scale gardening or pest control, a smaller wire diameter (e.g., 0.5 - 1.0 mm) and smaller opening sizes (e.g., 1/4″ - 1/2″ square) would be suitable. For heavy - duty applications like industrial fencing or concrete reinforcement, larger wire diameters (e.g., 5 - 10 mm) and larger opening sizes (e.g., 1 - 3″ square or appropriate rectangular sizes) are required. Consider the amount of stress the mesh will need to withstand, the size of the objects or animals it needs to contain or protect, and the overall purpose of the application.

4.Is galvanized welded mesh safe for use around food?

Galvanized welded mesh is generally not recommended for direct contact with food. The zinc coating may leach into the food over time, especially in acidic or moist conditions. However, if it is used in applications where it is not in direct contact with food, such as in the construction of food storage area enclosures or non - contact food - processing machinery guards, it can be safely used.
