Hexagonal Wire Mesh


Availability:

Quantity:



Inquire Add to Basket

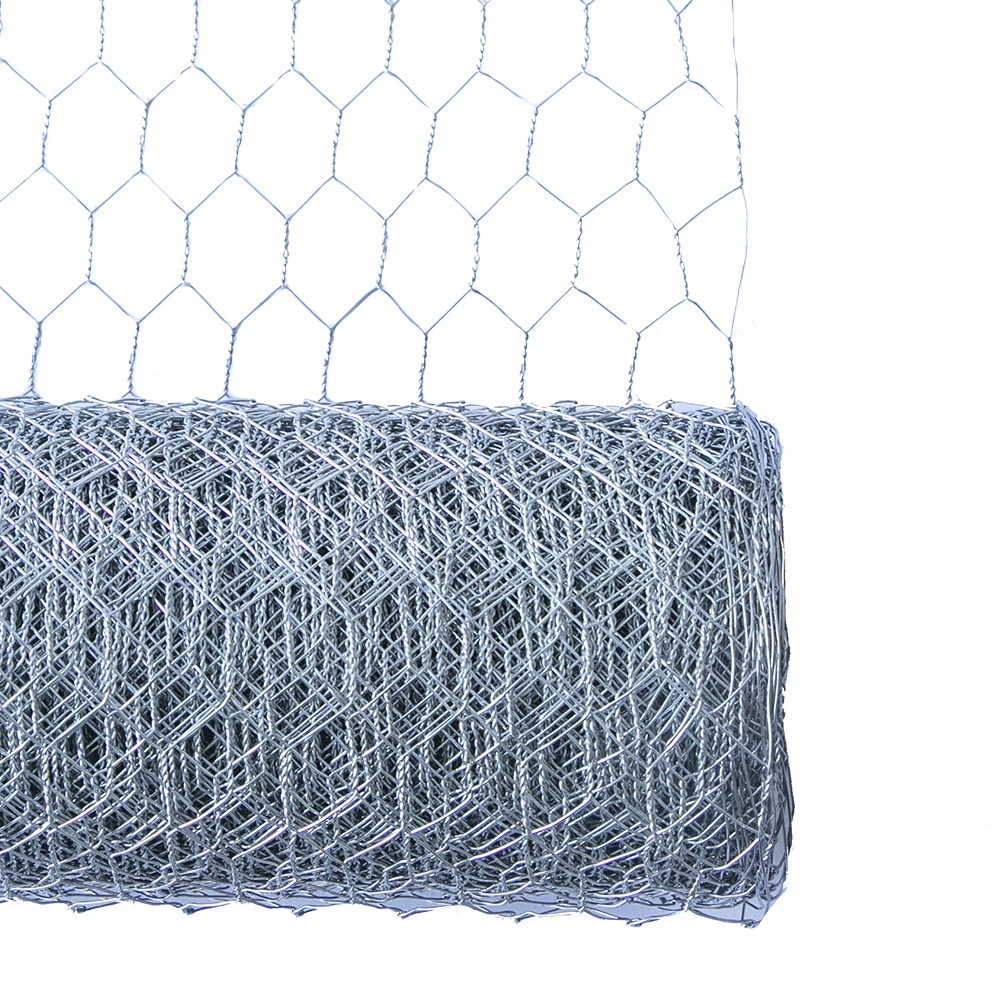

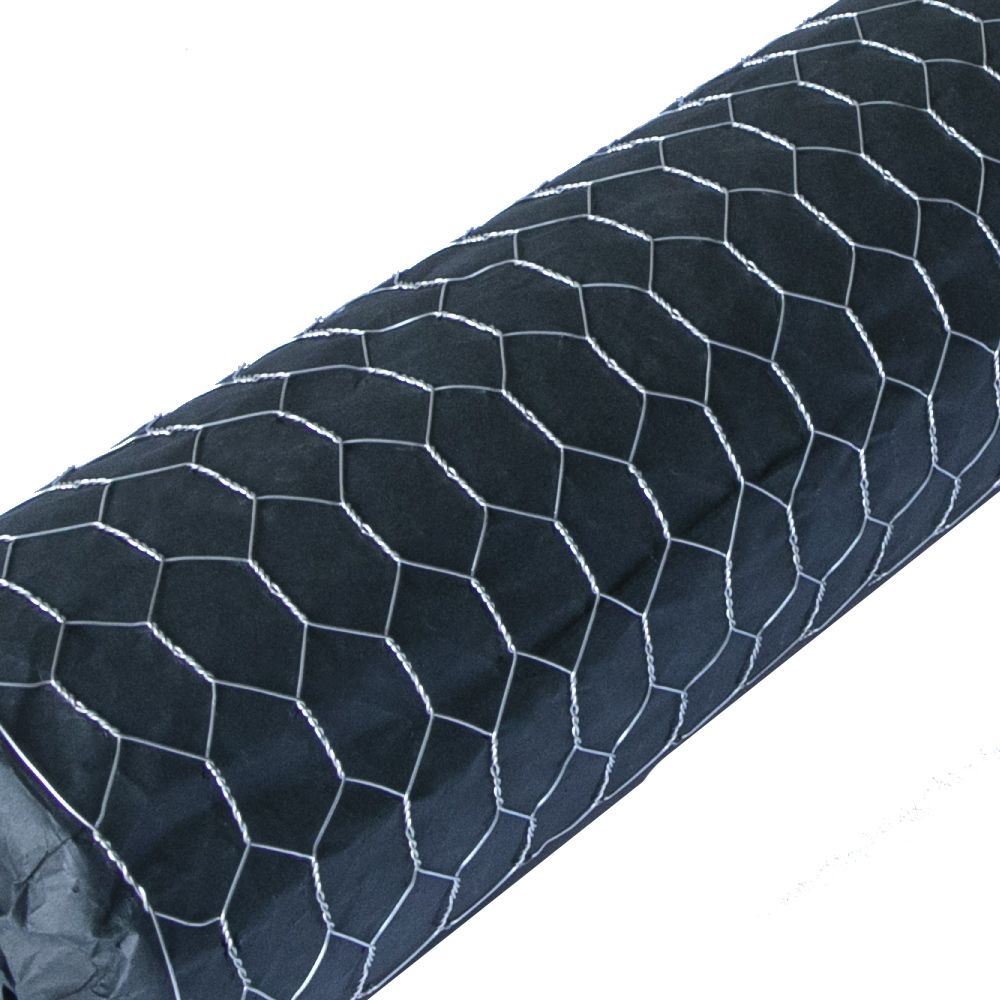

Hexagonal wire mesh (also known as chicken wire or hexagonal netting) is a lightweight yet robust woven mesh product characterized by its hexagonal (honeycomb) grid structure. Manufactured from low-carbon steel wire, galvanized steel wire, stainless steel wire, or PVC-coated wire, it is produced via precision weaving—where wires are interlocked to form stable hexagonal cells. This unique structure distributes stress evenly, offering excellent flexibility, impact resistance, and shape retention. Available in various mesh sizes, wire diameters, and surface treatments, it is widely used in agriculture, construction, filtration, wildlife management, and DIY projects, balancing cost-effectiveness with long-lasting performance.

Key Features

1. Superior Structural Stability

Hexagonal honeycomb structure dissipates pressure uniformly, resisting deformation under tension, compression, or impact—ideal for uneven terrain or dynamic loads.

2.Multi-Layer Corrosion Protection

Hot-dipped galvanized (zinc layer ≥ 60 g/m²): Resists rust for 10–15 years outdoors.

Electro-galvanized (zinc layer ≥ 30 g/m²): Cost-effective for indoor/moderate humidity use.

PVC-coated (0.5–1.0mm thick): Double protection against corrosion and UV rays, with color options (green/black) for aesthetic integration.

Stainless steel (304/316): Extreme corrosion resistance for coastal, chemical, or high-humidity environments.

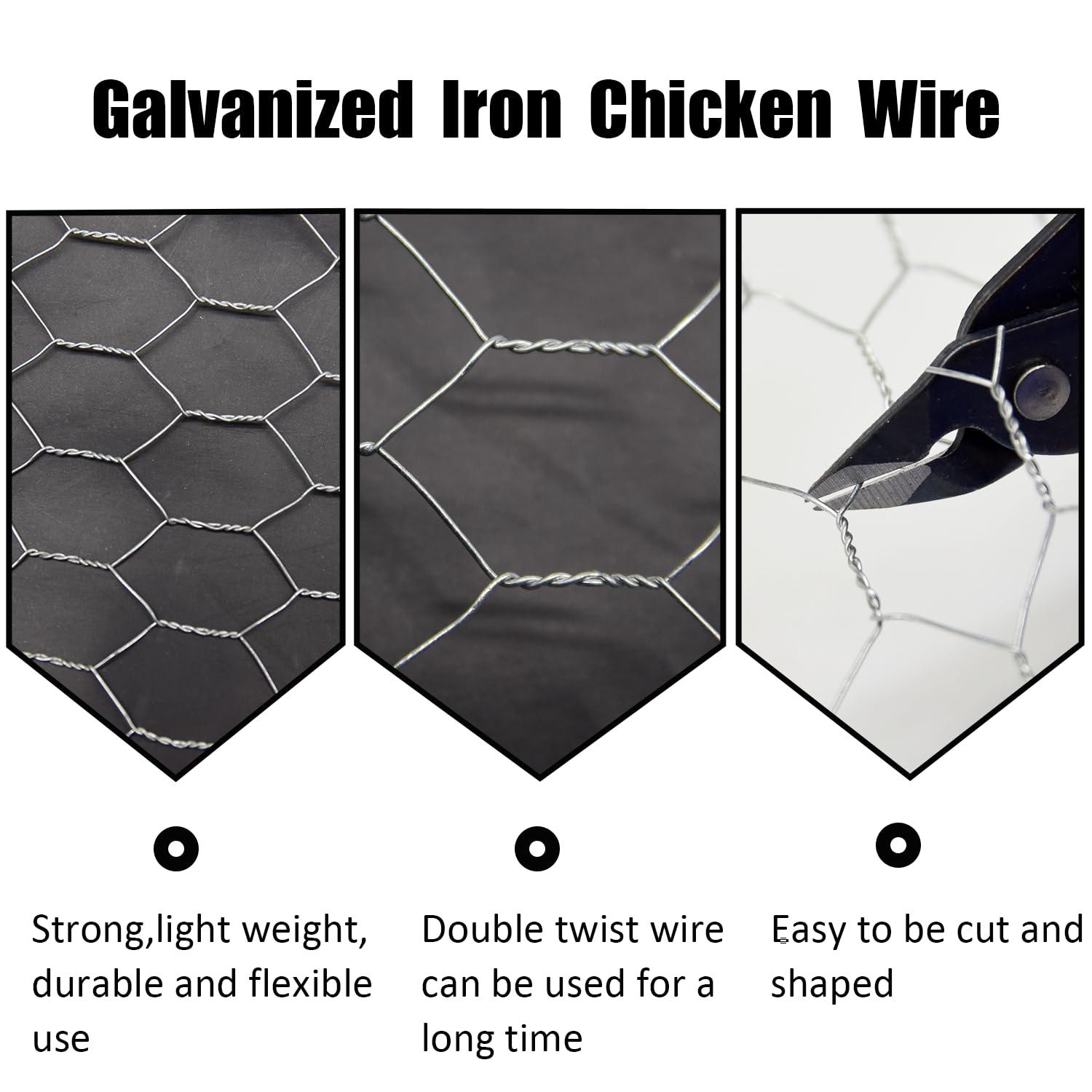

3. Exceptional Flexibility

Easily bends, cuts, and shapes to fit curved surfaces, slopes, or custom designs—no cracking or breaking during installation.

4. Easy Installation & Maintenance

Lightweight rolls (10–50kg) enable manual handling; can be secured with staples, clips, or T-posts without specialized tools.

Low maintenance: simply rinse with water to remove debris.

5. Versatile Compatibility

Works with fencing posts, frames, or concrete structures; compatible with wire binding, welding, or adhesive fixation.

6.Eco-Friendly & Safe

Non-toxic materials (food-grade PVC available) make it safe for animal enclosures and food-related applications; recyclable steel core reduces environmental impact.

Technical Parameters

Parameter	Typical Range	Notes
Material	Low-carbon steel, hot-dipped galvanized steel, electro-galvanized steel, 304/316 stainless steel, PVC-coated steel	Custom alloys available for special environments
Wire Diameter	0.5–2.0 mm (BWG 22–36)	Thicker wires (1.2–2.0mm) for heavy-duty reinforcement; thinner (0.5–1.0mm) for light protection
Mesh Size (Hexagon Side Length)	8mm–50mm (0.3"–2")	Common sizes: 12mm (0.5"), 19mm (0.75"), 25mm (1"), 38mm (1.5")
Roll Dimensions	Width: 0.5m–2.0m; Length: 25m–50m	Custom width/length available (min. order applies)
Surface Treatment	Hot-dipped galvanized, electro-galvanized, PVC-coated (green/black/white), stainless steel	Galvanization meets ASTM A123; PVC coating meets UV stability standards
Tensile Strength	350–800 MPa	Varies by base material (stainless steel > galvanized steel > low-carbon steel)
Weight per Roll	10–50 kg	Example: 1m width × 25m length × 1.0mm wire × 25mm mesh = 18kg
Temperature Resistance	-40°C to 80°C	PVC-coated variants: -20°C to 60°C; stainless steel: -200°C to 500°C

Applications / Projects

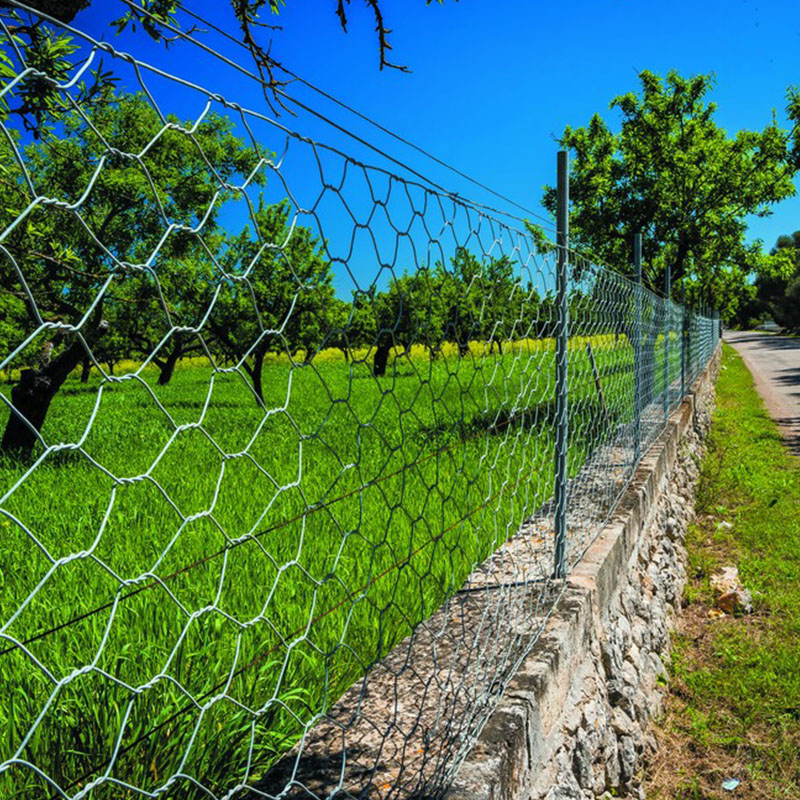

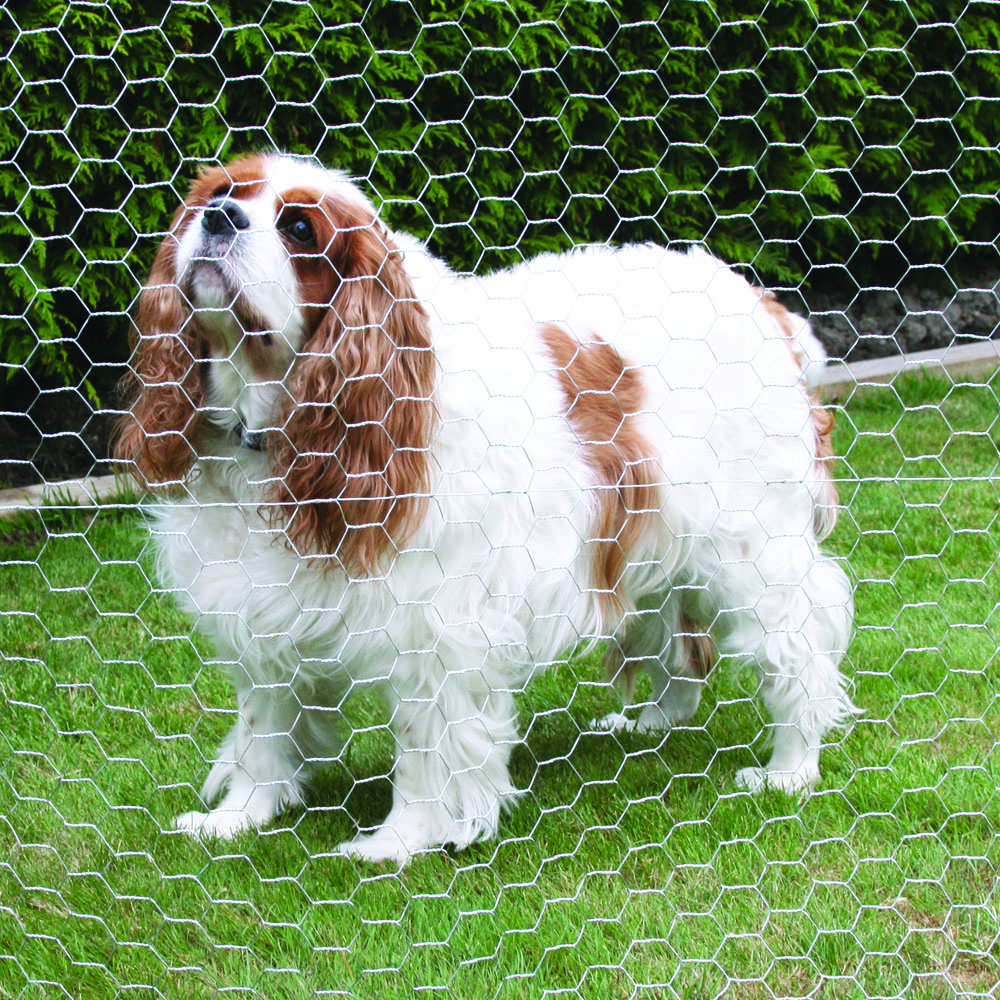

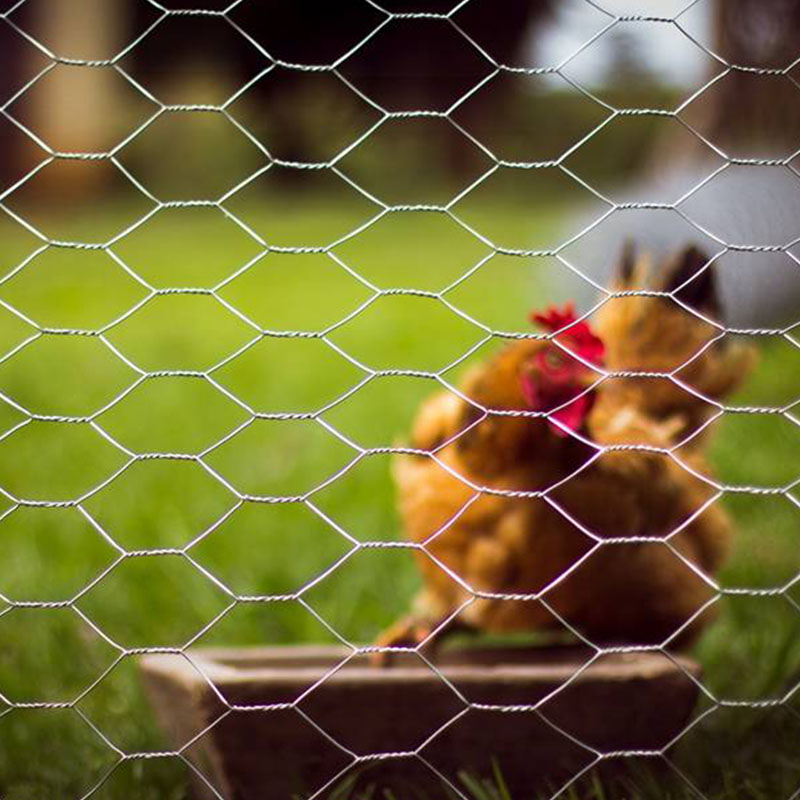

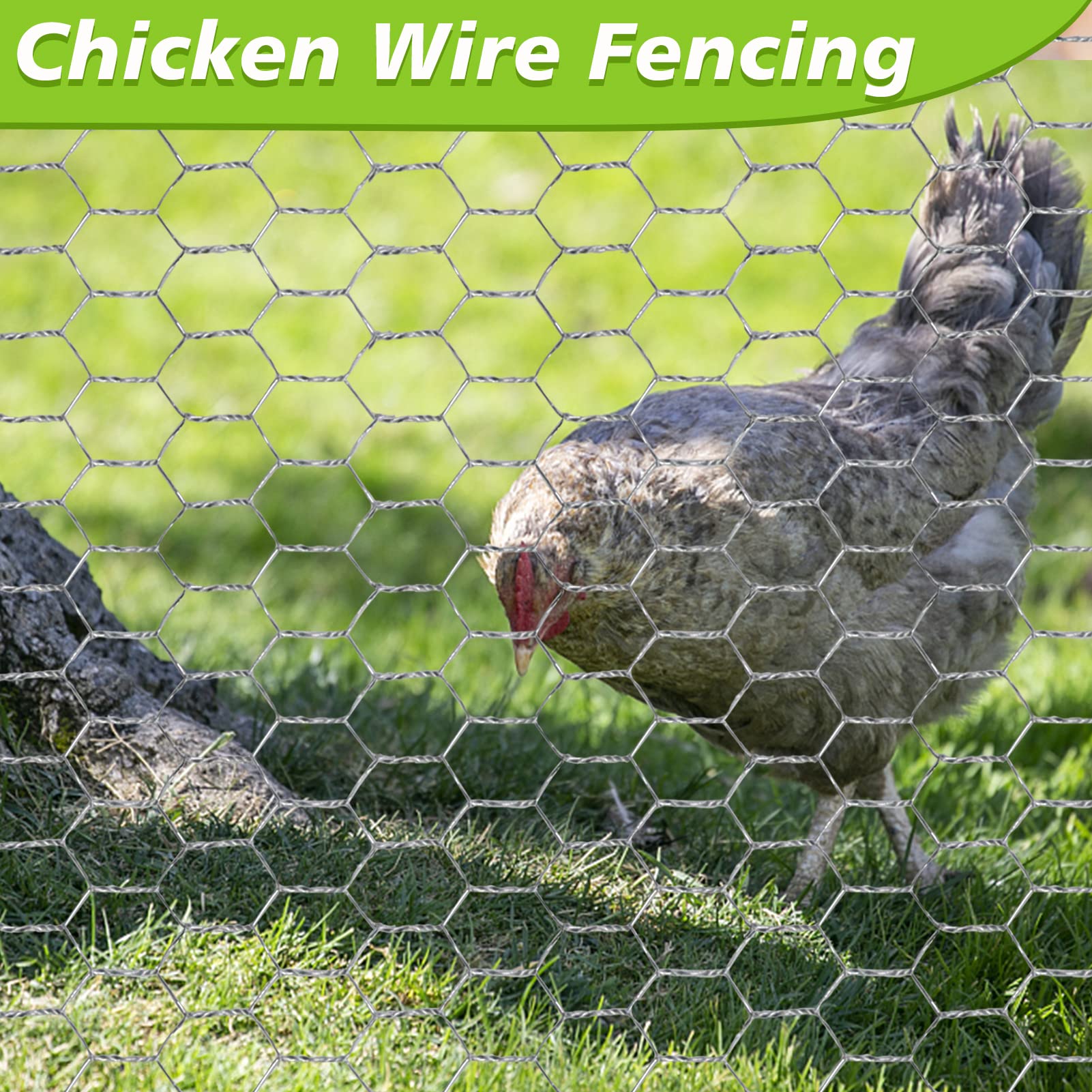

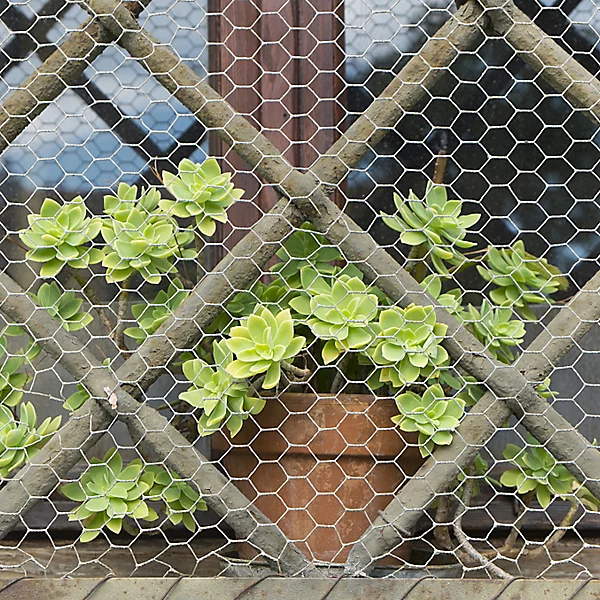

Hexagonal wire mesh serves construction reinforcement, animal enclosures, garden fencing, debris screening, and corrosion-resistant barriers in agricultural, industrial, residential settings.

Packaging & Shipping

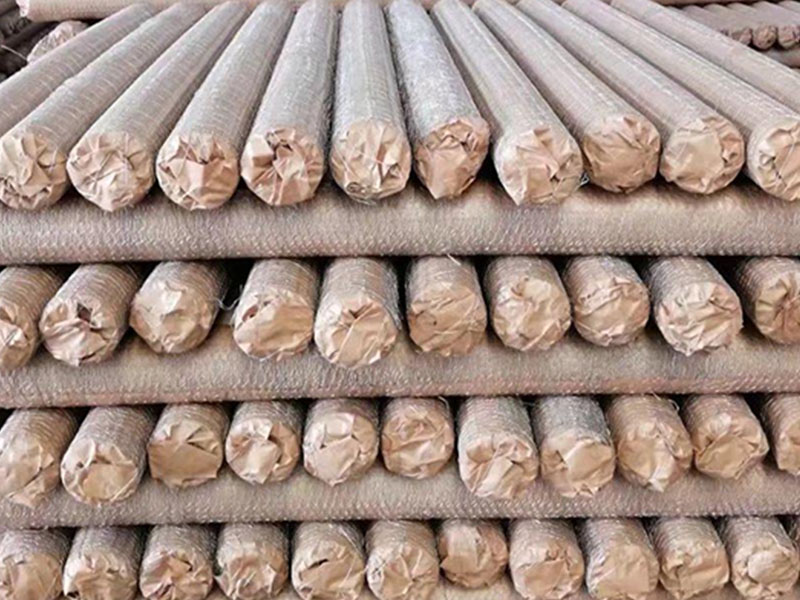

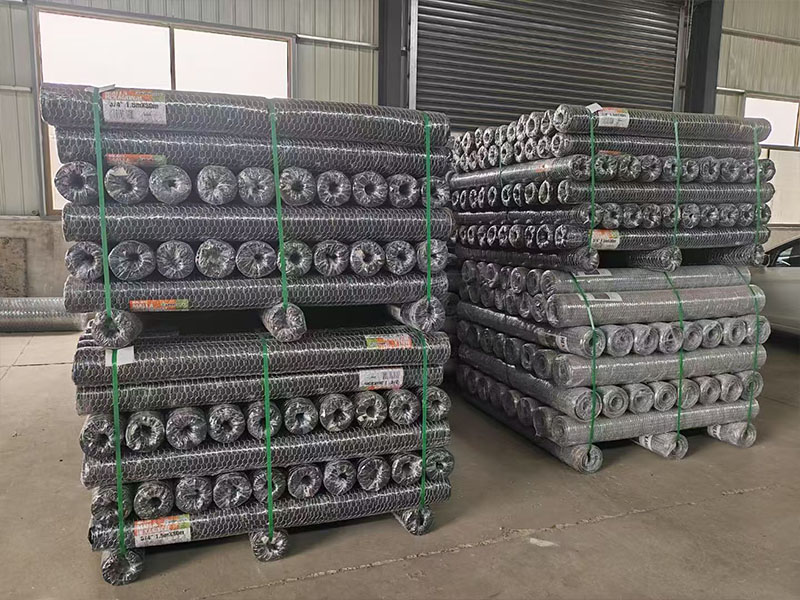

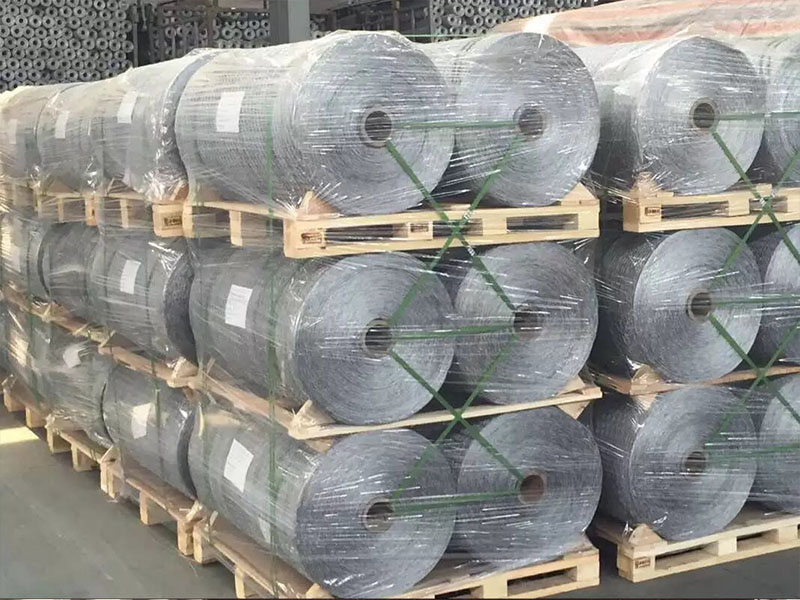

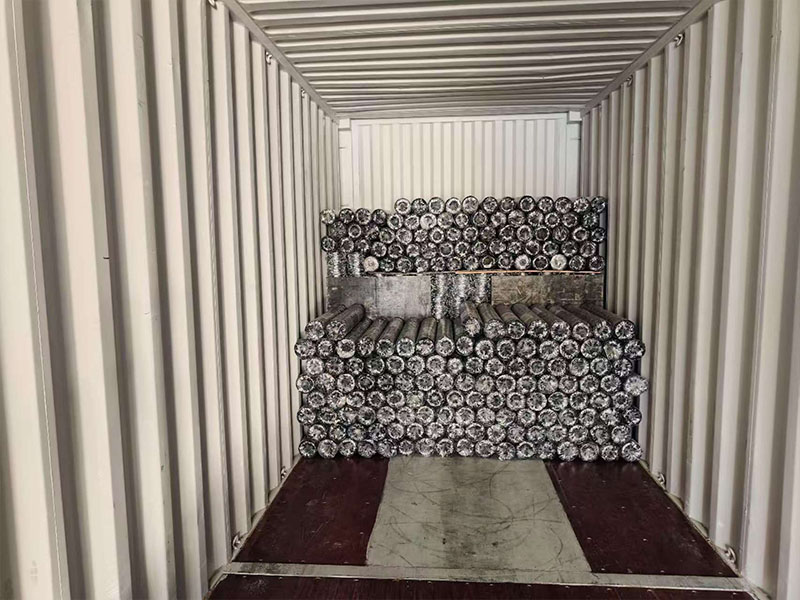

Hexagonal wire mesh packing focuses on protection and convenience. Each roll of hexagonal wire mesh is tightly wound, wrapped in moisture-proof plastic to shield hexagonal wire mesh from rust and damage during transit. Bundled with sturdy straps, hexagonal wire mesh rolls stay stable in shipping.

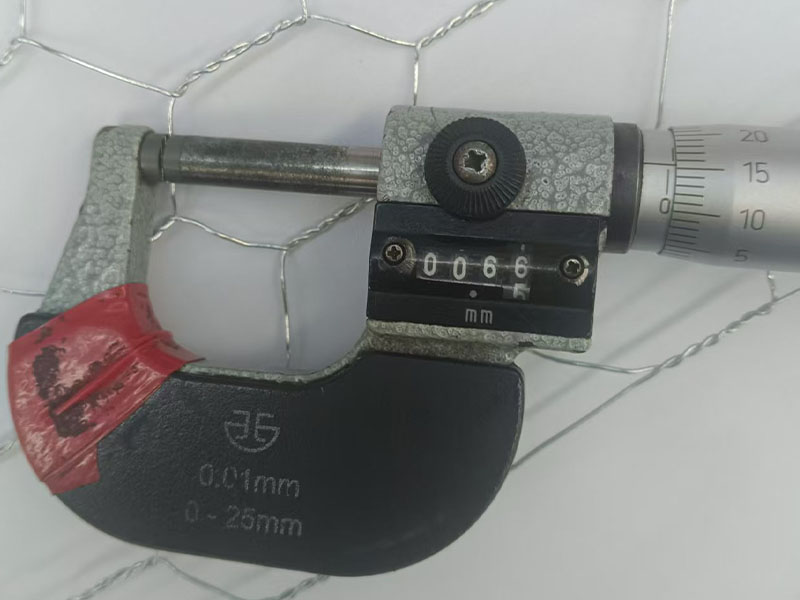

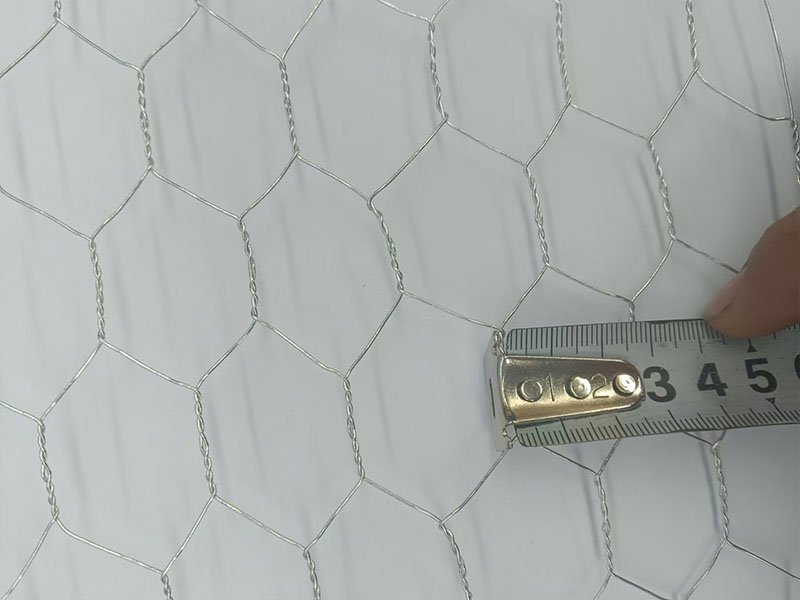

Inspection of hexagonal wire mesh is strict: check hexagonal structure uniformity, wire thickness, and coating adherence. Verify corrosion resistance and dimension accuracy. Reject hexagonal wire mesh with loose wires or defective coatings. Qualified hexagonal wire mesh ensures reliability for diverse applications.

FAQ

1.How to choose the right mesh size?

Small mesh (8–12mm): Insect screens, fry rearing, or fine filtration.

Medium mesh (19–25mm): Poultry enclosures, plastering mesh, or garden fencing.

Large mesh (38–50mm): Gabion baskets, slope protection, or heavy-duty fencing.

2.What’s the difference between hot-dipped galvanized and electro-galvanized mesh?

Hot-dipped: Thicker zinc layer (≥60g/m²), 10–15 years lifespan outdoors, ideal for harsh environments.

Electro-galvanized: Thinner zinc layer (≥30g/m²), 3–5 years lifespan, cost-effective for indoor/light outdoor use.

3.Can hexagonal wire mesh be cut to custom sizes?

Yes—use wire cutters or tin snips for manual cutting; for large quantities, we offer pre-cut sheets (minimum 100 sheets per order).

4.How to install hexagonal wire mesh on fences?

Secure to posts (wood/steel/T-posts) using U-staples, wire clips, or zip ties. Overlap adjacent rolls by 5–10cm for seamless coverage; bury the bottom 10–15cm to prevent animal digging.

5.Is it suitable for coastal areas?

Yes—choose 304/316 stainless steel or PVC-coated hot-dipped galvanized mesh to resist saltwater corrosion. Avoid electro-galvanized variants in coastal environments.

6.What’s the lifespan of hexagonal wire mesh?

Stainless steel: 20–30 years.

Hot-dipped galvanized: 10–15 years.

PVC-coated hot-dipped: 15–20 years.

Electro-galvanized: 3–5 years.

7.Can it be used for concrete reinforcement?

Yes—use medium-thick wire (1.2–1.6mm) and 19–25mm mesh; embed in concrete slabs, walls, or columns to prevent cracking.
